Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine
Product Quick Detail

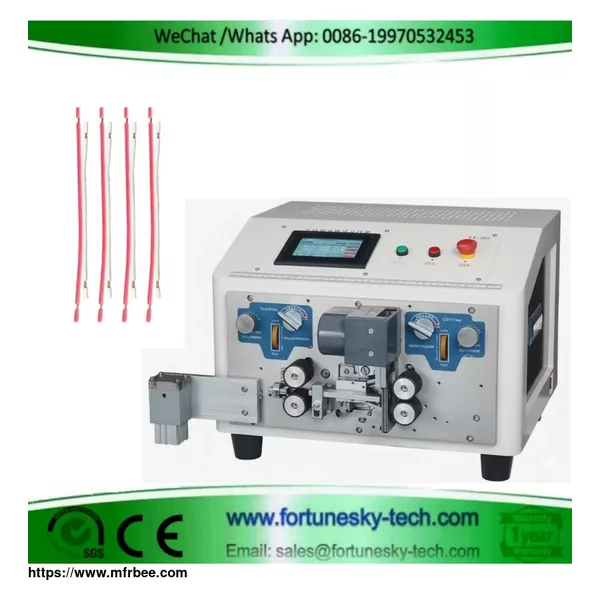

Automate wire processing with the FY902L Automatic Dual Parallel Wire Cutting, Stripping, and Splitting Machine. CNC touchscreen control enables precise, independent differential length adjustments for cutting, stripping (single/double end), and splitting. Features a burr-free utility blade splitting method, cylinder/roller wire pulling for unlimited length adjustments, and versatile application on 0.3-2.5mm² dual parallel wire. Achieve high capacity: 1000-2500 pieces/hour.
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Plywood Box
- Delivery
- 3 Days
Specifications
Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine
Features
Full touchscreen CNC control for easytounderstand digital operation including wire length singleend stripping doubleend stripping singleend splitting doubleend splitting singleend differential length stripping and doubleend differential length stripping
Utility blade splitting method provides a smoother burrfree split
The cylinder and roller design pulls the wire for splitting allowing for unlimited and easily adjustable splitting lengths
The independent splitting structure is easy to disassemble and can be used for general electronic wires making it a versatile machine
The L model handles two wires with length differences When the tail end has a significant differential stripping length a clamp is used to help straighten the wires The differential length is fully adjustable and can be easily switched between differential and nondifferential modes
Technical Parameters
Component Description Component Description
Equipment Name Automatic Dual Parallel Wire Diff LengthCutting Stripping Splitting Machine Cutting Wire Core 0325mm dual parallel wire
Equipment Model FY902L Cutting Length 01999999mm
Input Power AC220V 5060HZ Stripping Head Length 0130mm
Body Dimensions L520mmW465mmH350mm Stripping Tail Length 0130mm
Body Weight 38kg SplittingDifferential Length Arbitrarily adjustable
Total Power 680W Blade Material Highspeed steel
Rated Power 400W Stripping Accuracy Silent hybrid stepping motor 001mm
Display Mode 43inch color screen display CapacityHour 501000mm 10002500 pieceshour
Auxiliary Functions Automatic feedingretracting timed start jogging adjustment
Program Storage
Serial numbers 0099 onekey copy onekey read can be customized with names
