Automatic Double Parallel Wire Cutting Stripping Splitting Machine
Product Quick Detail

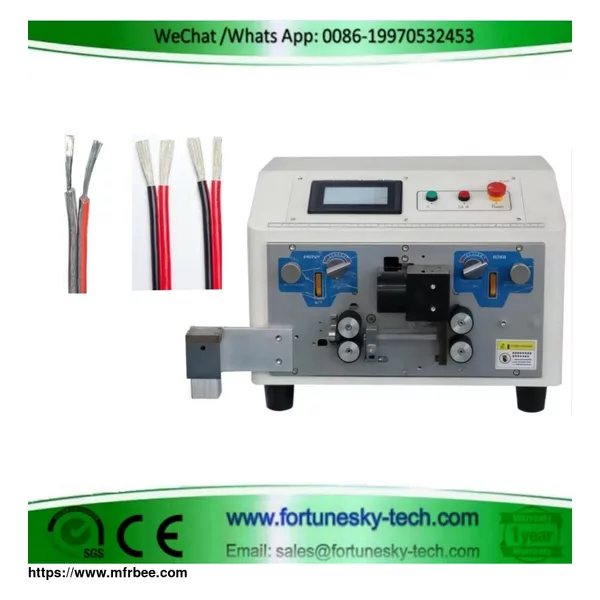

Automate your wire processing with the FY902 Automatic Double Parallel Wire Cutting, Stripping, and Splitting Machine. This CNC-controlled machine features a touchscreen interface, art knife splitting, and adjustable splitting length. It handles 0.1-2.5mm² double wires, cutting lengths from 0.1-99999.99mm, with precise stripping and splitting. Perfect for efficient, versatile wire preparation.
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Plywood Box
- Delivery
- 3 Days
Specifications
Automatic Double Parallel Wire Cutting Stripping Splitting Machine
Features
Full touch screen CNC control The wire length singleend stripping doubleend stripping singleend splitting doubleend splitting singleend offset and doubleend offset can all be digitally set and operated on the touch screen making it simple and easy to understand
Art knife splitting The artistic knife blade design makes splitting smoother with no burrs
Cylinder and roller traction The design uses a cylinder and rollers to pull and split the wire allowing the splitting length to be adjusted freely and conveniently without limitation
Independent splitting structure The splitting structure is designed to be easily disassembled and installed allowing the machine to be used for ordinary electronic wires making it a multipurpose machine
Lmodel with offset For two wires with a length offset the machine includes a clamp to assist in straightening the wire when the tail splitting offset is long The offset length can be adjusted freely and the machine can be switched between offset and nonoffset modes
Technical Parameters
Technical Parameter Specification Technical Parameter Specification
Equipment Name Automatic Double Parallel Wire Cutting Stripping Splitting Machine Wire Core Gauge 0125 mm double wire
Equipment Model FY902 Cutting Length 01999999mm
Input Power AC220V 5060HZ Head Stripping Length 0130mm
Machine Dimensions L520mmW465mmH350mm Tail Stripping Length 0130mm
Machine Weight 35kg Splitting Length Freely adjustable
Machine Power 680W Blade Material Highspeed steel
Rated Power 400W Stripping Accuracy Silent hybrid stepper motor 001mm
Display Method 43inch color screen display OutputHour 501000mm 15003500 wireshour
Auxiliary Functions Automatic inout wire timed start jogging adjustment Program Storage 0099 onekey copy onekey read custom nameable
