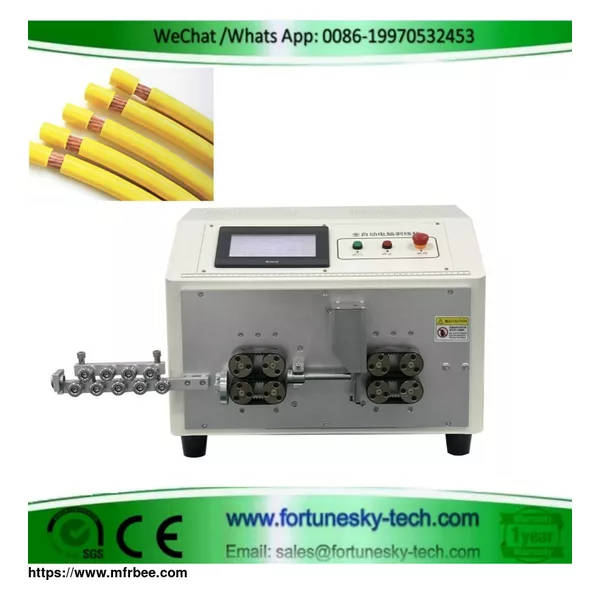

Automatic Battery Cable Cutting Stripping Machine
Product Quick Detail
Automate battery cable preparation with the FY880A Automatic Cutting & Stripping Machine. This CNC machine effortlessly cuts and strips cables (1-16mm diameter, 10-35mm²). Featuring 8-wheel track feeding, precise stripping (up to 150mm head, 70mm tail), and a user-friendly touchscreen, it delivers high-speed production (1200-2000 pcs/hour) with exceptional accuracy (0.01mm). Perfect for efficient wire processing, it offers multi-segment stripping and wire shortage detection.
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Plywood Box
- Delivery
- 3 Days
Specifications
Automatic Battery Cable Cutting Stripping Machine
Feature
This machine adopts 8wheel track feeding providing strong power and high wire feeding accuracy
Full touch screen computer numerical control debugging digital operation simple and easy to understand
Unique rounded and precise design exquisite and compact easy to place
Automatic wire feedingunfeeding timed start and jog adjustment switch
Onekey correction function for wire length error
Technical Parameters
Equipment Name Automatic Battery Cable Cutting Stripping Machine Model FY880A
Wire Core CrossSection 10 35mm Wire Diameter 1 16mm
Input Power AC220V 5060Hz Conduit Diameter 46810121416mm
Overall Dimensions L570mm W550mm H410mm Machine Weight 58KG
Cutting Length 001 9999999mm Head Stripping Length 001 150mm
Tail Stripping Length 001 70mm Middle Stripping Segments 16 segments customizable
Total Power 18KW Rated Power 08KW
Working Air Pressure 05 08MPa Production Capacity Approx 12002000 pieceshour
Feeding Speed 40500 metersmin Blade Material Highspeed steel Tungsten steel
Conduit Swing Electric Stripping Accuracy 001mm Silent Hybrid Stepper Motor
Feeding Method 8wheel track feeding Pressure Adjustment Twoway lead screw computerized pressure adjustment
Detection Functions Wire shortage detection Program Storage Programs 0099
Equipment Functions Wire cutting singleend stripping dualend stripping Transmission Structure Precision twoway lead screw guide sleeve guide column gear rack
Auxiliary Functions Automatic wire feedin and feedout timed start jog adjustment Display Type 7inch fullcolor touch screen
