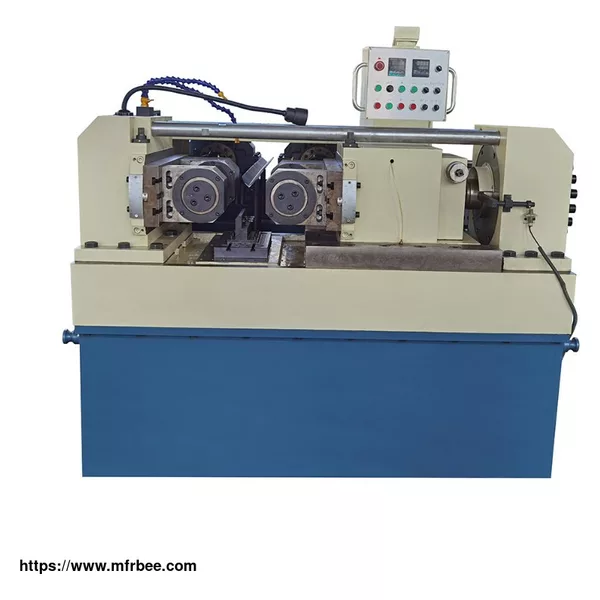

FD-80T Bolt Threading Machine for Sale
Product Quick Detail
Buy the FD-80T Bolt Threading Machine for precise and efficient bolt threading. Handles diameters from 12-130mm, thread pitches 1.0-15mm. Features an 80T max rolling pressure, 30KW main motor, and variable spindle speeds for optimal performance. Ideal for high-volume production. Get a quote today!
- Thread Length
- In feed or Thru feed
- Thread Pitch
- 1.0-15mm
- Working Diameter
- 12-130mm
- FOB Price
- USD $58,950.00 / Piece
- Minimum Order
- 1
- Place Of Origin
- CHINA
- Spindle Speed
- 16/21/27rpm (variable speed)
- Packaging
- Wooden case,1 set in 1 case
- Delivery
- 25-35 Days
Specifications
Specification
Working diameter 12-130mm
Thread pitch 1.0-15mm
Thread length In feed or Thru feed
Spindle speed 16/21/27rpm (variable speed)
Outside diameter of rolling die 220-300mm
Inside diameter of rolling die 100mm
Thickness of rolling die 250mm
Feed stroke 0-20mm
Mian motor 30KW
Hydraulic motor 5.5KW
Max rolling pressure 80T
Supply voltage 380V 3P 50Hz
Weight(reference) 7800(KG)
Package Dimension(L*W*H) 2550*2250*2000mm
Dimension(L*W*H) 2450*2150*1850mm
