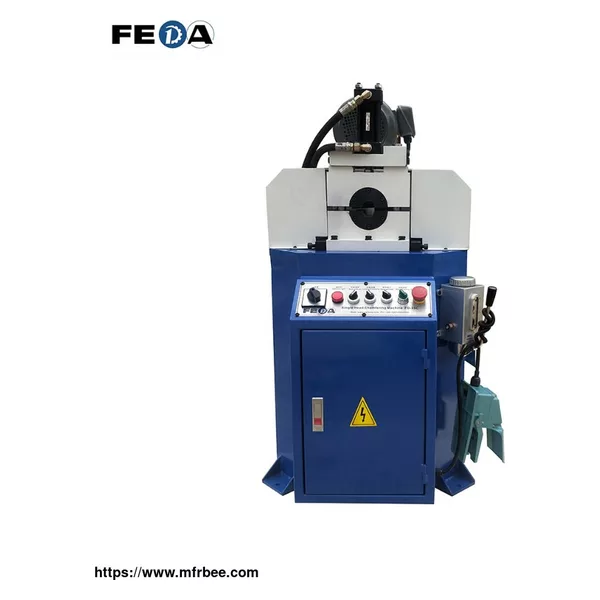

Fd-35c Automatic Chamferring Machine Hydraulic Cutting And Chamferring

1. High precision, stability and high durability

2. 30/45/60 degree are optional

3. Hydraulic system for clamping

4. Manual feeding, auto clamping, auto chamfering

5. Easy to exchange clamping dies and operate the machine

6. Safe machine with CE Certificates

Specification

Working diameter φ6-φ60mm

Clamping method Hydraulic

Working method Manual feeding, auto chamfering

Spindle speed 650-1300rpm (variable speed)

Chamfering angle 30/45/60 degree

Functions Chamfering & turning end face

Output(pcs/min) 10-25(pcs/min)

Main power motor 1.75KW

Hydraulic motor 0.75KW

Supply voltage 380V 3P 50Hz

Weight(reference) 320(KG)

Package Dimension(L*W*H) 1280*900*1200 mm

Dimension(L*W*H) 1230*850*1150 mm

FD-35C Automatic Chamferring Machine Hydraulic Cutting and Chamferring
