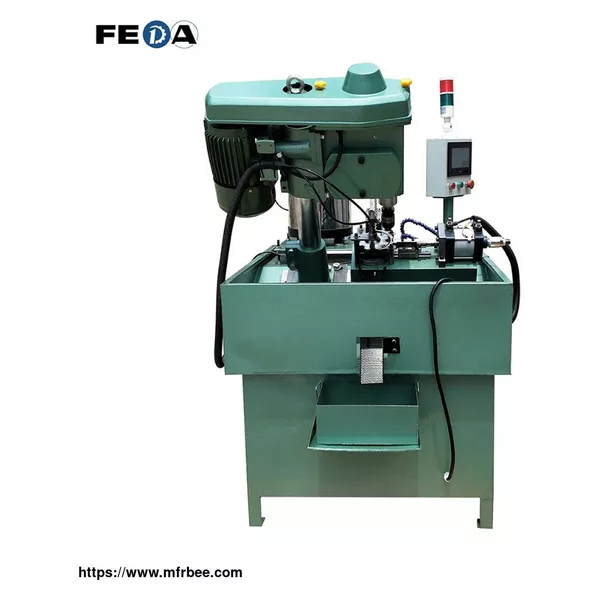

FD-6516 Fully Automatic Drilling Machine High Speed Tapping Machine
Product Quick Detail
The FD-6516 Fully Automatic Drilling & High-Speed Tapping Machine streamlines production. This machine combines forming & cutting thread in a single unit with automatic vibration bowl feeding, achieving high speed (10-15pcs/min) & precision. Durable, easy to operate & maintain, ideal for high-volume manufacturing with minimized labor costs. Handles thread diameters 2-16mm.
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $8,850.00 / Piece
- Minimum Order
- 1
- Packaging
- Wooden case,1 set in 1 case
- Delivery
- 20 Days
Specifications
1. Forming & cutting thread can be realized on only one machine
2. Adopt vibration bowl as automatic feeding devices
3. High speed, to save cost of time and workers
4. High precision, stability and durability
5. Easy to operate and maintain the machine
Specification
Max. spindle stroke 65mm
Spin warp 330mm
Thread diameter 2-16mm
Head movement distance 260mm
Distance between spindle and table 350mm
Table size 650*680mm
Base area 590*420mm
Capacity 10-15pcs/min
Dimension(L*W*H) 1200*1000*1500mm
Weight 750 KG
Motor 380V, 4P, 1.5KW
Number of spindle swing
50HZ-1340, 760, 420
60HZ-1600, 900, 500
