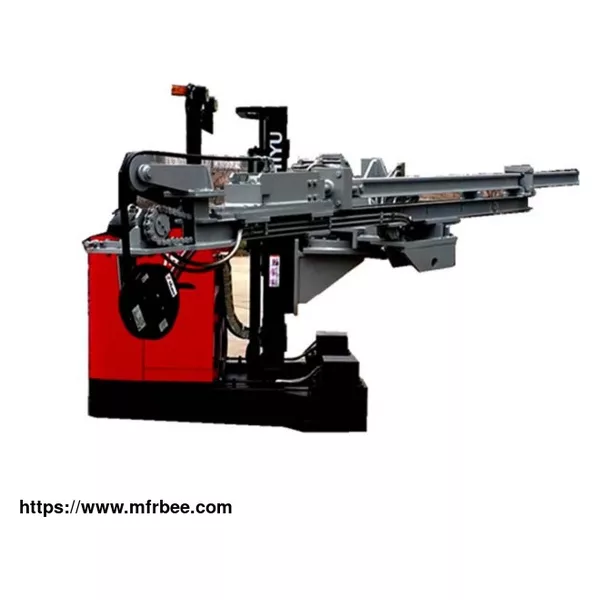

Calcium Carbide Furnace Tap Hole Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Dig furnace robot arm control has a walking mechanism, multi-station operator, hydraulic, electronic control, and other components. The operation is simple and practical. We can design and
manufacture the hole digging robotic arm with different functions according to different environments and different needs of smelting industries.
Function of Calcium Carbide Furnace Tap Hole Machine
Dig furnace robotic industrial arm is suitable for high risk and high labor intensity environment by replacing manual work in smelting industry, such as cleaning cooling slag, ramming raw material
of calcium carbide smelting furnace.
Advantage of Calcium Carbide Furnace Tap Hole Machine
Reduce the cost of human resources
The number of workers for basic configuration reduced by 75%. The annual labor cost can be saved more than hundreds of thousands of dollars.
Greatly reduce the cost of safety risk
The operators are completely isolated from the discharging working site, and the risk of personal injury during discharging is eliminated.
Effectively reduce the power consumption of calcium carbide production
The discharging process and channel are stable, and the accumulation of furnace bottom is reduced, which can effectively reduce the power consumption of calcium carbide production.
Technical Parameters of Calcium Carbide Furnace Tap Hole Machine
Lifting weight: 1500kg
Hoisting height: 800-2000mm
Lifting speed: 300mm/s
Walking speed: 150m/min
Front wheel Angle: 90°
Angle of working arm: 0°-90°
Working arm dip angle: 20°
Attention of Calcium Carbide Furnace Tap Hole Machine
1. Observe around before starting the furnace tap hole machine to avoid personal injury. Check whether the oil pump has abnormal sound and observe the oil level of the oil tank before starting. If
there is abnormal sound or the oil level cannot be seen, timely notify the maintenance personnel for treatment before use. Before digging the furnace, clean the large stones around the furnace.
2. When closing the door and tamping the furnace, it shall be stable, accurate and fast. During operation, the furnace shell and furnace door sliding frame shall not be continuously impacted for
many times to avoid breaking the motor screws. When digging the furnace, it is strictly prohibited for the furnace head to collide with the pressure ring and electrode (Prevent the pressure ring
from missing) when the furnace condition requires prying and sticking materials, pay special attention to the length of the tamping rod, and it is strictly prohibited for the rear wheel of the
furnace tap hole machine to be separated from the ground (to avoid damage to the bearing and steering arm).
3. When using the furnace tap hole machine for charging, it shall not stay in front of the furnace door for too long to avoid burning out the oil cylinder and seals. When the light of the furnace
platform is dark, a specially assigned person shall be responsible for guiding to ensure smooth walking, fast driving speed and rear wheel steering.
4. When it is out of use, the furnace tap hole machine shall be parked in a fixed parking place without affecting the normal traffic route. During shift handover, the person in charge or driver
shall conduct a comprehensive inspection. Whether there is a collision accident off the furnace tap hole machine shall be reported upward in time.
As one of heavy machinery companies, we can provide kinds of sludge drying machine for sale, if you are interested, please contact us.
