ERW Pipe Galvanized

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

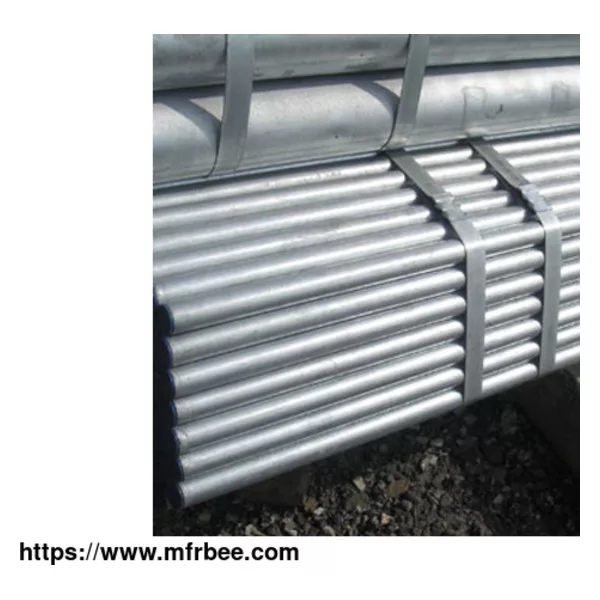

ERW Carbon Steel Pipe (electric resistance welding) is produced by welding strip of flat sheet metals.

That are formed, bent and prepared for welding. After that, making galvanization treatment to help prevent corrosion, rust, thereby extending the pipe life.

Welded Steel Pipe is available in A53, BS1387 and API 5L specification. Welded carbons steel is the most cost effective solution for a high quality pipe with pressure integrity test.

ERW Galvanized Steel Pipe Dimensions

Carbon Steel A53 GR.B Pipe Composition

Manufacturer and supplier of ASTM A53 Steel Pipes in Type E/ F and Type S

Type S (seamless) Type E (electric-resistance welded) Type F (furnace- welded pipe)

Grade A Grade B Grade A Grade B Grade A

Carbon max. % 0.25 0.3 0.25 0.3 0.3

Manganese % 0.95 1.2 0.95 1.2 1.2

Phosphorous, max. % 0.05 0.05 0.05 0.05 0.05

Sulfur, max. % 0.045 0.045 0.045 0.045 0.045

Copper, max.% 0.4 0.4 0.4 0.4 0.4

Nickel, max. % 0.4 0.4 0.4 0.4 0.4

Chromium, max. % 0.4 0.4 0.4 0.4 0.4

Molybdenum, max. % 0.15 0.15 0.15 0.15 0.15

Vanadium, max. % 0.08 0.08 0.08 0.08 0.08

ERW Pipe Galvanized Mechanical & Physical Properties

ASTM A53 Gr.b Carbon Steel Pipe Mechanical & Physical Properties

A53 Mechanical Properties

Grade A Grade B Grade C

Tenside strength, min, psi (MPa) 48000(330) 60000(415)

Yield strength, min, psi (MPa) 30000(205) 35000(240)

Tensile Requirements

Seamless and Electric-resistance-welded (ERW) Continuous-Welded

Grade A Grade B

Tensile Strength, min., psi 48,000 60,000 45,000

Yield Strength, min., psi 30,000 35,000 25,000

Application of ERW Steel Pipes Galvanized

Oil and Gas field.

Water and other liquid transportation.

Steel structures.

ERW Pipe Galvanized FAQs

What Is The Difference Between LSAW Pipe And ERW Pipe?



The LSAW pipe diameter range is larger than ERW, normally from 16 inch to 60 inch, 406mm to 1500mm. Good performances on high pressure resistance, and low-temperature corrosion resistance same as well.

As an erw pipe manufacturer , we will do our best to meet all the needs of customers.

We can also offer kinds of flanged globe valves for sale, if you have needs, please contact us.
