Hydraulic Hose Crimping machine

Place Of Origin
hebei
Packaging
N/A
Delivery
15 Days
Hydraulic hose crimping machine also called hydraulic hose crimper, is used for crimping hydraulic hoses. Unlike some hose crimper manufacturers our hydraulic hose crimping machines are designed to accord with various kinds of hydraulic hoses to make hose assemblies without effort and difficulty. Our hydraulic hose crimping machines include high pressure hydraulic hose crimper and mini automatic hydraulic hose crimping machine. High quality hose crimping machine is vital to mechanical engineering, so it's important to choose a qualified machine according to the method to identify offered by us.

High pressure hydraulic hose crimping machine

Hydraulic hose crimping machine used for high pressure hydraulic hoses

The hydraulic hose crimping machine is often seen in the heavy duty mechanical engineering and hydraulic systems of industrial field. And it finds its applications for crimping two-way bends, esp. large bends and non-standard hose assemblies.

Features and benefits:

Nice appearance, small and portable.
Equipped with big force, easy to operate
Low noise, quick operation
Adjustable crimping amount, low cost
Even mould base division
Technical parameters:

Items Specifications
Hose range 6-51mm (I.D.)
Max. crimping force 400T
Scale accuracy 0.02mm
Oil pump pressure 31.5Mpa
Oil pump displacement 5ml/rad (380V) or 2.5ml/rad (220V)
Overall dimensions 670(L)×490(W)×780(H) mm
Mini automatic hydraulic hose crimping machine/crimper

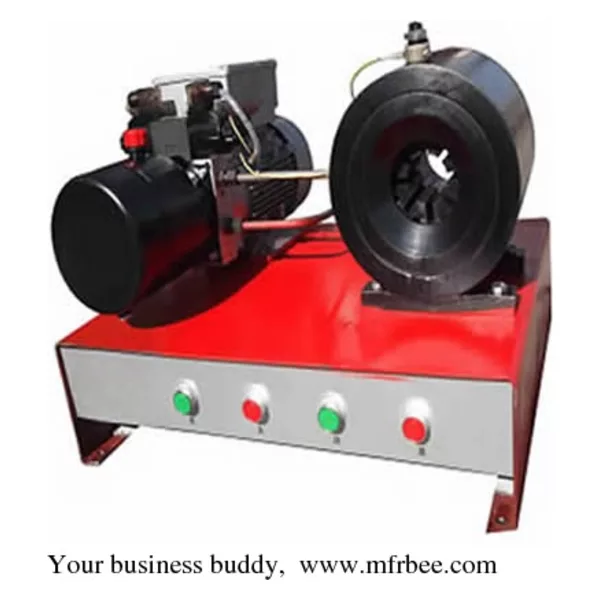

Portable hydraulic hose crimping machine in red color used for hydraulic hoses

This kind hydraulic hose crimping machine or hose crimper is also called portable hydraulic hose crimping machine, used for crimping one-wire and two wire hoses of the I.D. 4-27mm. It’s very light and easy to handle, especially used in wild fields or other conditions that heavy duty machine cannot available.

Technical parameters:

Items Specifications
Hose range 4-27mm (I.D.)
Max. crimping force 150T
Die Opening & Closing +/-20mm
Oil pump pressure 20Mpa
Oil pump displacement 5ml/rad (380V) or 2.5ml/rad (220V)
Overall dimensions 600(L)×500(W)×300(H) mm
Motor power 1.5KW
Operating voltage 380 (220)V
Dies 4 sets
Die no. and length 16(65), 20(65), 24(65), 28(75)mm
Weight 80kg
Finished products:

Six hydraulic hoses made by hydraulic hose crimper Five hydraulic hose assemblies finished products
