Livestock Feed Mill Plant

Some Questions About the Livestock Feed Mill Plant

1. Who is Suitable for This Livestock Feed Mill Plant?

This livestock feeds mill plant is specially designed for farmers, animal farm plants, animal feed suppliers, etc.

2. What Raw Material Can Use in The Livestock Feed Mill Plant?

livestock feed mill plant raw materials include corn/maize, wheat, grass, alfalfa, oilseed meal & cakes, pasture, bone meal, microelements, etc., and other kinds of raw materials, such as premix, vitamins, wheat bran, salt and other. Different formulations can be made according to different formulas and the needs of the animals being farmed.

3. What Kind of Livestock Feed Pellet Production Line Can Produce?

This feed pellet production line can produce feed for meat livestock, broilers, laying hens, and small baby livestock feed, and livestock feed, pig feed, duck feed, sheep feed, poultry feed, livestock feed, goat feed, etc. Such as 2-4mm diameter chick feed pellets and pig feed pellets. 2-5mm rabbit feed pellets, 4-8mm livestock or sheep feed pellets.

This feed pellet mill with a ring die, make pellets of 2-10mm in diameter, the pellet size can be changed with our feed pellet machine by adjusting the die.

4. Why Choose Our Livestock Feed Production Line?

Widely Applications: This livestock feed pellet mill plant can make feeds for livestock, broiler, hen, poultry, livestock, sheep, pig, livestock, duck, and other animals, it makes pellets of 2-12mm diameter, and the pellet size can be changed with our feed pellet machine by adjusting die.

Small Investment: the compact design of this feed mill plant can reduce the investment in workshops.

Low Installation Cost: our livestock feed production line comes with detailed installation and commissioning instructions, it is easy to install the machine, and you can use it immediately after the machine is installed.

Low Production Cost: The livestock feed factory only needs a few production workers to complete the production operation. With less labor and lower production costs, your profits will increase.

5. What Can We Do for You?

We can provide the project design, flow chart, feed-making machine manufacturer, the project installation and commission, your staff training, after-sales service, etc. Also, our professional install team will serve you if you need it.

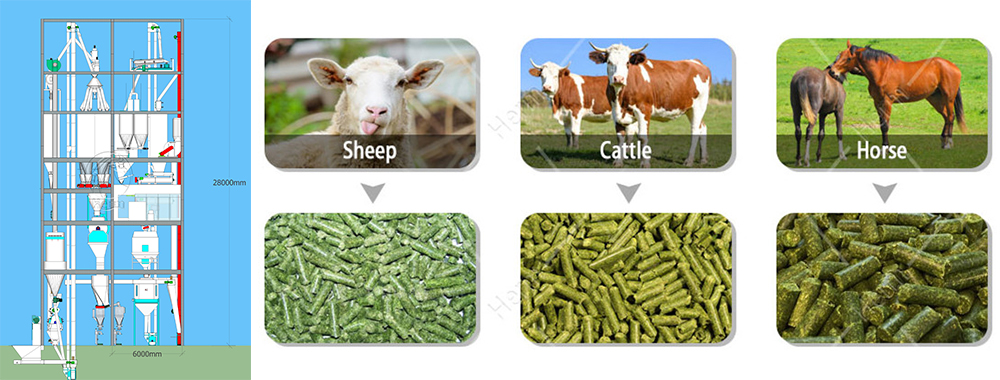

What is The Complete Livestock Feed Pellet Production Line Working Process?

Feed Pellets Processing Technology

Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing

Equipment Related to Complete Feed Manufacturing Plant

Feed Grinder →Feed Mixer → Feed Pellet Mill → Counterflow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine

Storage of The Raw Materials

There are many different raw materials and materials in the feed, so various types of silos must be used. There are three types of silo that can be used in the feed pellet line, such as hopper silo, flat bottom silo, and galvanized silo.

Cleaning of Raw Materials

Impurities in feed raw materials not only affect the quality of feed products but also directly affect the use of feed processing equipment and the personal safety of staff. In severe cases, the entire equipment will be damaged and the smooth progress of feed production will be affected. Therefore, impurities in the feed raw materials should be removed in time.

Crushing of Raw Materials

The technological process of feed crushing is determined according to the required particle size, feed variety, and other conditions. The number of raw material crushing can be divided into primary crushing process and circulating crushing process, or secondary crushing process. The combination with the batching process can be divided into the first batching and then crushing process and the first crushing and then batching process.

Batching Process

The rational design of the batching process is to correctly select the specifications and quantities of the batching metering device so that it is fully coordinated with the combination of batching feeding equipment, mixing units, and other equipment.

Mixing Process

The mixing process refers to the technological method and process of weighing the ingredients in the feed formula and then entering the mixer for uniform mixing. The mixing section requires a short mixing cycle, high mixing quality, fast discharge, low residual rate, good airtightness, and no dust spillage.

Pelleting Process

The pelleted feed obtained by compacting and extruding a single raw material or compound mixture by mechanical action is called feed pelleting. The purpose of pelleting is to use the heat, moisture, and pressure in the pelleting process to pelletize the feed that is finely divided, easily dusty, poorly palatable, and difficult to transport.

Cooling Process

During the pelleting process, when the pellet feed comes out of the feed pellet machine, the water content reaches 16%-18%, and the temperature is as high as 75°C-85°C. It will also cause adhesion and mildew during storage. The moisture must be reduced to below 14%, the temperature must be below 8°C higher than the air temperature, and cooling is required.

Crumbling Process

In the production process of the feed pellet mill, in order to save electricity, increase productivity and improve quality, the material is often made into a certain size of pellets and then crushed into qualified products according to the size of the feed pellets.

Screening Process

After the pellet feed is processed by the crushing process, some unqualified materials such as powder will be produced. Therefore, the crushed pellet feed needs to be sieved into a product with neat particles and uniform size.

Packaging Process

After weighing, put the finished product into the packing scale and pack it. During this process, the package should be calibrated until the package weight standard is met.
