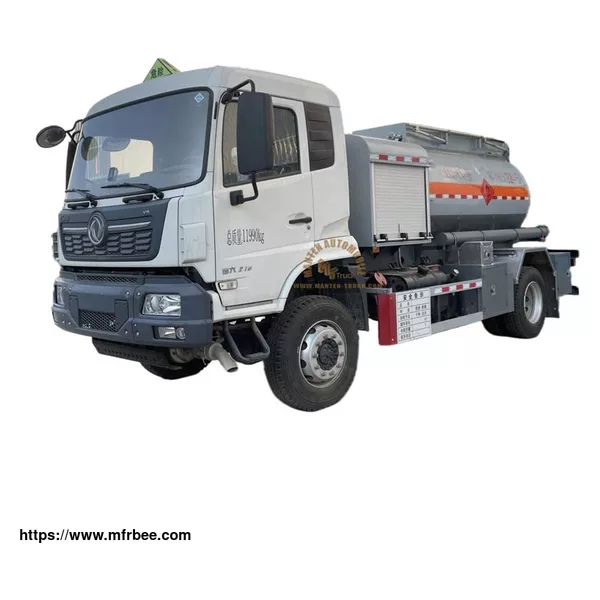

Fuel & Oil Tank Truck

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Fuel tank special truck: also known as oil loading truck, oil transport truck, oil pulling truck, oil transport truck and edible oil transport truck, it is mainly used for the transportation and storage of oil derivatives (gasoline, diesel, crude oil, lubricating oil, coal tar and other oil products)

Depending on the purpose and environment, it has a variety of refueling or oil transportation functions, such as oil absorption, oil pumping, multi oil sub loading and sub discharging. The special part of the oil truck is composed of tank body, power take-off, transmission shaft, gear oil pump, pipe network system and other components. The pipe network system is composed of oil pump, three-way four position ball valve, two-way ball valve, filter screen and pipeline.

We use the world's pressure and volume cutting-edge manufacturing equipment, one-time roll forming manufacturing process, mechanical transverse weld, computer-controlled automatic forming head, full weld butt welding inside and outside, solid and durable.

Specification of Fuel & Oil Tank Truck

SPECIFICATION

Truck Specification

Product Name Fuel Tank Truck

Truck Manufacturer MANTEN GROUP

Chassis Specification

Chassis brand Dongfeng , Foton, Sinotruk Howo, ISUZU, FAW ,NORTH BENZ, JAC, CAMC ,

Drive type 4X2 ,6X4,8X4, 4X4, 6X6,8X8

Engine brand Cummins, ISUZU ,Wechai, Yuchai, Yunnei

Transmission brand Fast ,ZF , Manual/ ATM

Tire brand Tri-angle, Double Coin, Good year ,Michelin

Upper body specification

Tank Capacity 3000L Litres - 300000L Litres

Tank Material Carbon Steel/Stainless steel/Aluminum Alloy

Manhole on top tanker European standard, including pressure relief valve

Safety Valve European Standard

Discharge Valve Alluminum Alloy Ball Valve type

Emergency Cutoff Device Equipped

Oil Pump Equipped

Standard configuration Tool box,climbing ladder, handrail, fire extinguisher, 15M oil hose etc are included

Fuel & Oil Tank Truck Manufacturers & Suppliers

1. Specialized and modular production, Each parts for fuel tank truck is precision manufactured, with strong interchangeability, long service life of the tank, stability and reliability, and low failure rate.

2. Customized design, the fuel tank truck can be specially designed according to different users, different uses and special needs. Users can also divide many comprtments on tank body, install the fuel dispenser and change the European standard parts according to actual needs.

3. Sand blasting on the external surface of the tank,

remove oil and dirt, and make the material surface densely covered with micro pits

to increase the adhesion of the paint surface。

4. Advanced production equipment and professional testing equipment, High pressure gas leak test is adopted to make the tank have the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation,

The head of the tank body is made by the original head machine,which imported from the United States. All the heads are cold treated, with smooth edges and easy butt joint. The head welding is adopt mechanical automatic welding; The shockproof plate is formed by one-time stamping, which can withstand high impact force, effectively improve the strength of the tank body, and have a long service life.

We can provide kinds of diesel fuel tanker trucks for sale , if you want to buy 2000 gallon fuel truck, 2800 gallon fuel truck, 3000 gallon fuel truck, 4000 gallon fuel truck, 5000 gallon fuel truck, please contact us.

As a trailer dealer, we will do our best to meet all the needs of customers.
