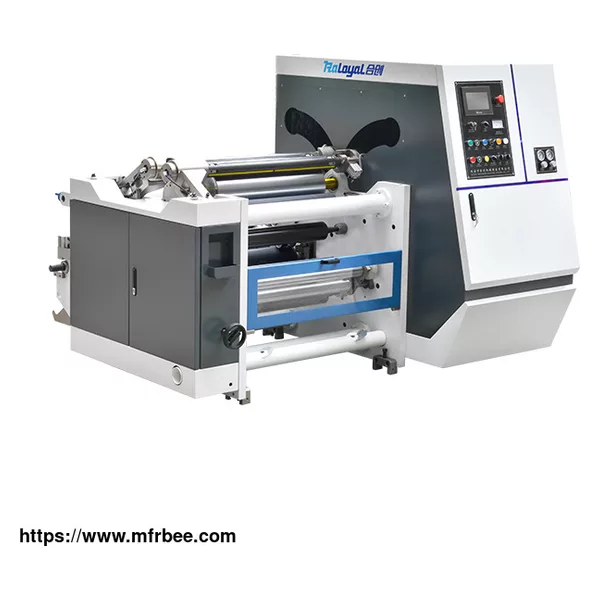

HC-C650/1300/1600B Surface Coil Slitting Machine

Minimum Order: 1

Packaging: WOODEN CASE

Delivery: 35 Days

This PI film slitting machine is suitable for the slitting of metallic material: aluminum foil, copper foil, PET CCL, BOPP, PET, CPP, PE, PVC, film, paper, PSP DPP Paper,etc.

Features

Use of HC-C650/1300/1600B Surface Slitting Machine

This machine is suitable for the slitting of straw paper, aluminum foil, copper semiconductor, PET CCL, BOPP, PET, CPP, PE, PVC, film, paper, DPP Paper,PSP Paper etc.

Characteristic of HC-C650/1300/1600B Surface Coil Slitting Machine

-Servo motor control, automatic taper tension, the center surface coiling method;

-Frequency control, to maintain smooth operation in the acceleration;

-Automatic meter, alarm and other functions;

-Rewinding using A, B inflatable shaft structure, back-style rewinding, loading and unloading easy operation;

-Unwinding using optical edge correction method;

-round knife (film using flat knife structure) slitting waste automatic discharge device;

-pneumatic automatic shaft / hydraulic automatic shaft-free structure (customers choose their own configuration).

Technical parameter

1 Machine model HC-C650B

HC-C1300B HC-C1600B

2 Unwinding width 650mm 1300mm 1600mm

3 Slitting thickness 12g/m^2~300g/m^2

12g/m^2~300g/m^2 12g/m^2~300g/m^2

4 Standard slitting width 5~650mm

5~1300mm 5~1600mm

5 Slitting speed 300m/min

300m/min 300m/min

6 Unwinding roll diameter Φ600mm

Φ1000mm Φ1000mm

7 Rewinding roll diameter Φ600mm

Φ600mm Φ600mm

8 Main motor power 3kw

7.5 kw 7.5 kw

9 Rewinding motor power 2×3kw

2×7.5kw 2×7.5kw

10 Machine weight 2500kg 3000kg 3500kg

11 Installation dimension 2500*1850*1800mm

3150*2500*1800mm 3150*2800*1800mm

Case Share

Meeting Rotas for the first time was at LABELEXPO exhibition in Shanghai. He came and stopped by our stand, with the classic and elegant smile. After short talk, we knew he is from Thailand and runs a very reputable company of release film and other materials. Also, he has built a new plant and plans to purchase a slitter to convert the flexible pet material. The inquiry for the slitter is to slit very narrow film width 5mm and also want to slit back side of the material.

Now the slitting machine cost is reasonable, if you want to buy copper foil slitting machine, please leave us a message.

As a slitting rewinding machine manufacturer, we can provide types of Raloyal high speed slitting machine for sale, if you are interested, please contact us.
