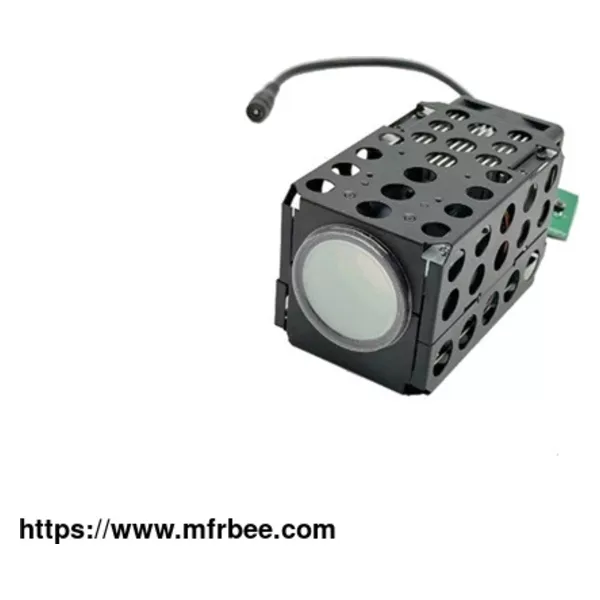

1550nm Laser Illumination Module

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Intelligent auto-dimming
Smart Sync Zoom
Smart match, Hot-swappable
Real-time monitoring, intelligent control
Intelligent Temperature Control
Photoelectric conversion rate of 90%

TECHNICAL SPECIFICATION OF 1550NM LASER ILLUMINATION MODULE SWIR LENSES & ACCESSORIES
Type IR-1550-2W
Size L W*H 128 x 65 x 66 mm
Weight ≈400g
Input Voltage DC 12V ± 10%
Input Current 1. 2A ± 0.2A
Initialization Time < 3s(From Tele To Wide)
Consumed Power ≤ 20W
Output Optical Power 2.0 ± 0.2W
Laser Wavelength 1550 ± 15nm(@25℃)
Illumination Angle 1.0° ~ 40°(Continuous zoom)
Spot Diameter φ 8.8m(@1 °, @500m)
Longest Illumination Distance ≥ 500m
Communication Interface RS 485/UART port TTL Default: 38400bps
Communication Protocol Pelco_ D
Operating Mode Continuous Working Mode
Operating Life ≥ 10000H
Storage Temperature -20℃~+50℃
Operating Temperature -20℃~+55℃

GHOPTO is a professional swir camera manufacturer, we provide 1550nm laser diode module, laser light module, swir infrared, etc. For more information, please feel free to contact us!
