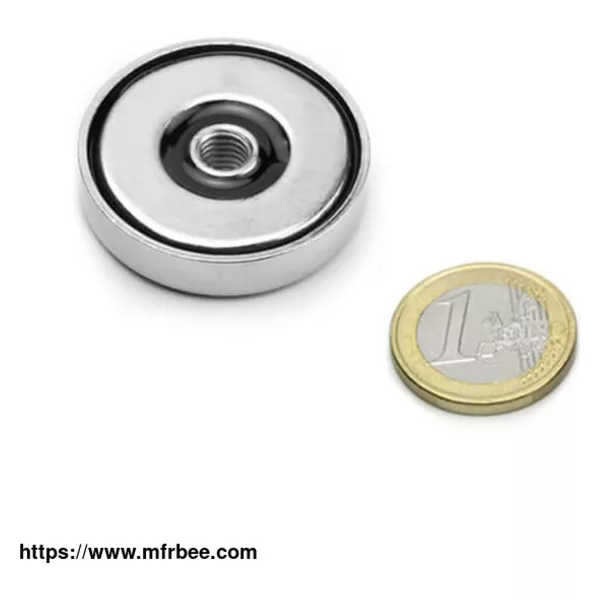

Pot Magnets With Threaded Through Hole

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

The magnet with threaded hole series has threaded holes in the centre. These pot magnets with threaded holes are composed of ring-shaped magnets and steel shells with screws and give the name of internal (female) threaded pot magnets. sockets. Both neodymium and ferrite materials are used as magnetic cores for the internally threaded pot magnets. Pot magnets with threaded holes are widely used as holding magnets for households and workshops.

Neodymium Pot Magnets With Threaded Hole Popular Sizes

25mm Pot Magnets With Threaded Hole

Neodymium Pot Magnet Ø25mm with M5 Threaded Through Hole

Neodymium Holding Magnets with Threaded Hole-25mm-Pull 20 Kg

32mm Pot Magnets With Threaded Hole

Ø32mm Neodymium Pot Magnets with M5 Through Threaded Hole

Rare Earth Holding Magnets 32mm with Threaded Sockets-Pull 35 Kg

36mm Pot Magnets With Threaded Hole

Neodymium Pot Magnets Ø36mm with M6 Threaded Screw Hole

Ø36mm Neodymium Mounting Magnet with Threaded Socket - Pull 92 Lb

42mm Pot Magnets With Threaded Hole

Ø42 Mm Rare Earth Neodymium Pot Magnets with M6 Threaded Hole

Neodymium Cup Holding Magnets Ø42mm with Threaded Socket - Pull 150 Lb

48mm Pot Magnets With Threaded Hole

Neodymium Pot(cup) Magnets Ø48mm with Threaded Sockets - Nickel Plated

Ø48 Neodymium Mounting(holding) Magnets with Through Threaded Holes

60mm Pot Magnets With Thraeded Hole

Ø60mm Strong Cup(pot) Magnets Neodymium with Threaded Holes

Neodymium Mounting(holding) Magnets Ø60mm with Threaded Sockets

75mm Pot Magnets With Threaded Hole

Ø75mm Heavy Duty Neodymium Pot Magnets with M10 Threaded Sockets

Extra Strong Holding(mounting) Magnets Ø75mm with Threaded Holes

Request Offer

Specification Overview of Standard Neodymium Pot Magnets With Threaded Hole

Items Code Dimension(mm) Attraction(kg)

D(mm) M D2(mm) H(mm)

NdFeB-H-16 16 M3 6.5 5 7

NdFeB-H-20 20 M4 8 7 10

NdFeB-H-25 25 M5 9 8 20

NdFeB-H-32 32 M5 9 8 35

NdFeB-H-36 36 M6 11 8 42

NdFeB-H-42 42 M6 11 9 68

NdFeB-H-48 48 M8 15 11.5 75

NdFeB-H-60 60 M8 15 15 112

NdFeB-H-75 75 M10 18 18 164

Neodymium Internal Thread Pot Magnets With Threaded Through Holes

Neodymium ring magnets are encased in steel houses with threaded sockets, such strong magnet assemblies are called internally threaded neodymium pot magnets. The pot magnets with threaded holes are perfect mounting magnets for households and many industries.

Our neodymium internal threaded pot magnets are supplied with standard size of 16mm, 20mm, 25mm, 32mm, 36mm, 42mm, 48mm, 60mm and 75mm, the threaded screw hole changes to fit screw of M3 to M10. Nickel plating are the most popular surface treatment for neodymium internal thread pot magnets. Standard neodymium internal threaded pot magnets maximum withstand 80℃ temperature. Ferrite pot magnets are better for higher temperatures.

Order Pot Magnets With Threaded Holes From Beilun Meank For Better Deal

As a leading wholesale pot permanent magnet manufacturer, BeiLun Meank provides magnet with thread at affordable cost and the best quality. Short lead time is available for internal thread neodymium pot magnets with sizes ranging from 16mm to 75mm. Special packaged and custom designs are acceptable for all the pot magnets. Contact us today for a better deal!

If you want to know more kinds of china permanent magnet, please visit our website.
