Cylindrical Roller Bearings

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Cylindrical roller bearings ( also called CRB in short) are a kind of radial rolling bearings with cylindrical rollers. The rollers are lined in parallel shapes, in between the rollers are cages that are able to avoid the leaning of roller or friction between rollers. In consequence, the rotating torque is also avoided. The contact between the cylindrical rollers and the raceways is linear contact. In general, china cylindrical roller bearings adopt pressed steel cages or machined brass cages.

Types of

Cylindrical Roller Bearings

Bearing roller cylindrical can be classified in several types based on different index. Based on the row of rollers, cylindrical roller bearings can be divided into single row cylindrical roller bearing, double row cylindrical taper roller bearing and four row cylindrical roller bearing. Based on the ribs of the rings, cylindrical roller bearings can be divided into NU, NJ, NUP, N, NF, NNU, NN etc types. For this classification, the inner and outer ring are separable. ZWA Bearings manufactures types of radial cylindrical roller bearings to meet customers' demand in diferent industries like mining, steel making, etc.

Single Row Cylindrical Roller Bearing

Single row CRB bearings with cages are part of radial roller bearings. Compared with the ball bearings’ balls, the rollers have a bigger contact to the roller axle.

SINGLE ROW CYLINDRICAL ROLLER BEARING

Double Row Cylindrical Roller Bearing

The rollers of double row cylindrical roller bearing are crossing arranged. While rotating, the wave ratio is one time higher than single-row cylindrical roller bearings.

DOUBLE ROW CYLINDRICAL ROLLER BEARING

Four Row Cylindrical Roller Bearing

Four-row cylindrical roller bearings are kind of separable bearings. The rings and roller components are easily separable.

FOUR ROW CYLINDRICAL ROLLER BEARING

Full Complement Cylindrical Roller Bearings

Full complement cylindrical roller bearing is a kind of cylindrical roller bearing designed without cages. In this design, the number of rollers are the biggest in all the bearings types.

FULL COMPLEMENT CYLINDRICAL ROLLER BEARINGS

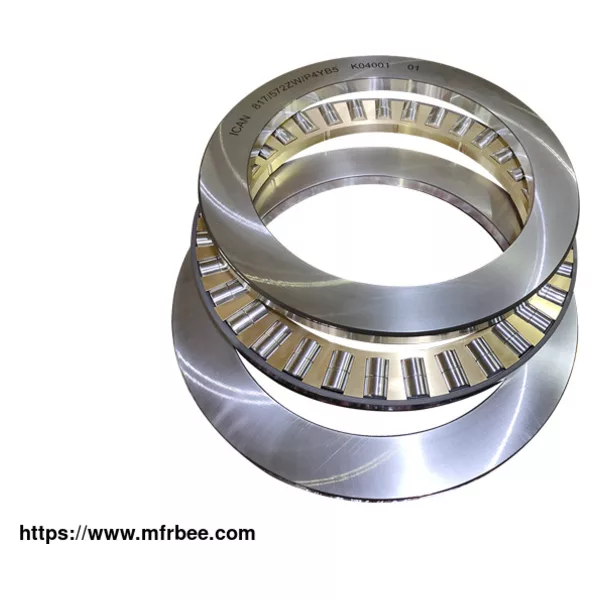

Cylindrical Roller Thrust Bearing

Cylindrical roller thrust bearings consist of rollers, cage components, shaft ring and housing ring. Those components are separable for efficient and convenient operations.

CYLINDRICAL ROLLER THRUST BEARING

Cylindrical Roller Bearings Advantages & Benefits

They can bear heavy radial loads because while the loads grow heavier, cylindrical roller bearings’ rollers can be kept static. Meanwhile, they can also bear some slight thrust loads.

They are able to reduce friction due to their cylinder shapes. Meanwhile, these bearings also have a crowned surface which prevents the stress from concentrating on one special point.

The inner ring and outer ring of ZWA’s cylindrical roller bearings are interchangeable. Meanwhile, the separable feature of inner and outer rings make the mounting, dismounting, maintenance, and inspection are more convenient and effective.

Last but not least, cylindrical roller bearings are also capable of bearing axial displacement in the equipment, especially in that application with vibration, cylindrical roller bearings stand out among other roller bearings.

Cylindrical roller bearings are mainly applied in the following fields:

Rolling mills, vibration equipment, reducers, motors, etc.

Cylindrical Roller Bearing Clearance Chart

ZWA, one of the top cylindrical roller bearing manufacturers in China

Reduce the cost

Increase the productivity

Enhance the operational reliability

Prolong the service life of the equipment

As one of cylindrical roller bearing manufacturers, we can provide kinds of related products for sale, and the cylindrical roller bearing price is reasonable, anything you need, please contact us.

If you are looking for a reliable bearings limited, please choose us, and we will be your best partner.
