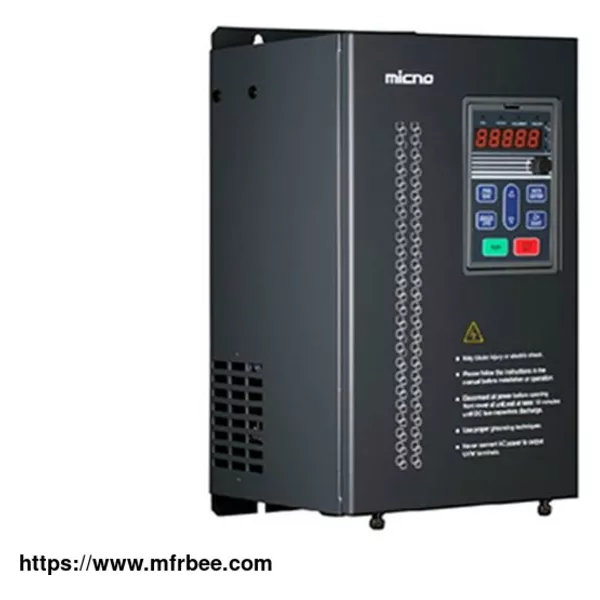

KE600B Series Spindle Servo Drive

KE600B series high-performance spindle servo drive built-in position loop and servo positioning function. When used in the machine, it can realize closed-loop control of the spindle motor which has the encoder with the fast response and smooth speed feature. KE600B could be widely used in motor driving applications with a higher requirement on position control.

Features of KE600B Series Spindle Servo Drive

Comprehensive parameter identification

With comprehensive parameter identification, simultaneously compatible with dynamic and static identifications for both synchronous motors and

asynchronous motors.

Multi-motor switching

Built-in multiple motor parameters, supporting multi-motor switching.

Modular design, compatible with various expansion cards

KE600B has superior expansion capability. Users can choose PG card, I/O expansion card, MODBUS communication card, injection molding

card, pulse expansion card, according to their actual needs.

Fast dynamic response

Sensorless vector control, dynamic response time<20ms;

Close-loop vector control, dynamic response time<5ms.

High-precision torque control

When close-loop vector control, the torque control accuracy achieving ±5%, easily responding to tension winding control.

High start torque, and super low-frequency load-carrying capability

0.5Hz, 150% start torque (sensorless vector control asynchronous motors)0Hz, 200% startup torque (close-loop vector control asynchronous motors)

Non-stop when instantaneous power off

With the capability of non-stop when instantaneous power off, ensuring the system continuously operate without tripping in case of instantaneous power off.

AVR automatic voltage regulation

When the input voltage is fluctuant, the inverter can automatically keep the constant output voltage.

Powerful positioning function

With powerful positioning function and built-in position loop, achieving spindle positioning control.

Excellent close-loop vector control for synchronous motors

With excellent close-loop vector control for synchronous motors, capable of high torque output at zero speed, the speed ratio up to 1:1000.
