Explosion Proof High Bay Lighting

FOB Price: USD $10.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Products Show for Explosion Proof High Bay Lighting

High lumens efficiency high bay lighting, low bay lighting, pendant lighting for area lighting solutions

to meet requirements in hazardous locations

Explosion proof high bay light fixture, other names such as explosion proof area lighting, explosion proof pendant light, explosion proof drop light, explosion proof temporary lighting, explosion proof ceiling light, explosion proof recessed lighting, occupy more than 30% requests for the type of explosion proof lighting, besides, explosion proof led high bay lights trend to replace at least 80% of explosion proof high bay lighting.

Designed with a bay shape widely for area lighting used in high ceiling and narrow areas with high lumens, explosion proof high bay lighting normally are structured with die cast aluminum flame proof housing and built-in led explosion lamp and driver to make it possible to be used as class 1 and class 2 light fittings whose hazard class division rates from class 1 div 1 to class 1 div 2, class 2 division 1 to class 2 division 2 hazardous locations, from Zone 1 to Zone 2 explosive atmosphere. SUREALL explosion proof led high bay lighting is the best lighting from oil and gas lighting to paint booth lighting and gas station lights and the main features is more flexible mounting accessories to install anywhere probably you have no space to install, such as pendant mounting, ceiling mounting, wall 30° mounting，wall straight mounting, stanchion 30° mounting ,stanchion straight mounting.

Category

Explosion Proof High Bay Lighting

Explosion Proof Led High Bay Lights Class 1 Div 1 Zone 1 SHB Series

Class I Division 1

Zone 1&2, Zone 21&22

LED 30-240W

Type 4X, IP66

Explosion Proof Led High Bay Lights Class 1 Div 2 Zone 2 SHB-II Series

Class I Division 2

Zone 2, Zone 21&22

LED 30-300W

Type 4X, IP66

Explosion Proof Led High Bay Lights Class 1 Div 1 Zone 1 SO-I Series

Class I Division 1

Zone 1&2, Zone 21&22

LED 30-150W

Type 4X, IP66

Explosion Proof Led High Bay Lights Class 1 Div 2 Zone 2 SVM Series

Class I Division 2

Zone 2, Zone 21&22

LED 30-300W

Type 4X, IP66

Explosion Proof Led High Bay Lights Class 1 Div 2 Zone 2 SVM Series

Features

Explosion Proof High Bay Lighting

Die cast aluminum flame proof or increased safety housing

Independent chamber for led driver, led lamp and connection

Optional flexible and convenient mounting accessories

High lumen output to lighting a high ceiling work place

Energy saving led lamp compared with traditional HID lamp

Wide voltage power input for different grid

Wide ambient temperature range from -40℃ - +55℃

IP66, IP67 ingress protection, NEMA 4X

Class 1 Div 1, Class 1 Div 2, Class 2 Division 1, Class 2 Division 1

Zone 1, Zone 2, Zone 21, Zone 22

Main Use

Explosion Proof High Bay Lighting

Explosion proof high bay lighting have diversified usages, in order to make you understand clearly, now we are listing the main usage fields from four aspects, hazard class division, usage by application, usage by physical place and alternative for brand-new models.

Hazard class division

You know there are different classifications and divisions for any explosion proof lighting, the same as explosion proof high bay lighting, hazard class division can be class 1 div 1 and class div 2, class 2 division 1 and class 2 division 2, zone 1 and zone 2, zone 21 and zone 22, you can check the hazardous area classifications chart from other pages.

Usage by application

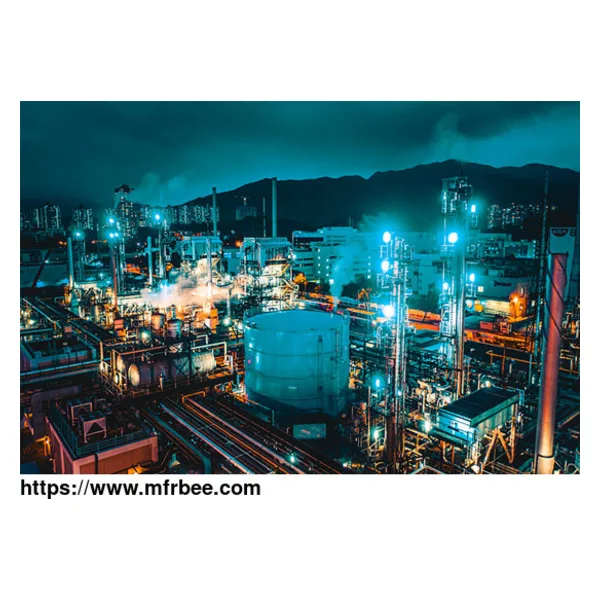

Depends on the application field, explosion proof high bay led light can be used in crude oil plant, refinery plant, LNG and LPG plant, petrochemical and chemical plant such as paint booth lighting plant, gas station lights plant, anywhere there is combustible gas, vapor, mist and dust.

Usage by mounting places

Explosion proof high bay led can be used in high or low ceiling areas, narrow areas, confined space, steel structure areas, wall areas, stanchion areas, guardrail areas and other areas without support frame or plates.

Alternative for brand-new model

SUREALL explosion high bay lighting is the alternative lighting solution for eve lighting, eclipse 2, champ up, gl lighting, nevis light, nexled light, vtgg, vm lighting, vmvm and vmv tech solutions.

What Makes A High Bay Light Explosion Proof?

The specially designed explosion proof structure makes a high bay light explosion proof.

SUREALL explosion proof high bay lighting normally have three separate chambers, chamber for led driver, chamber for led lamp and chamber for connection. The chamber for led driver is normally Ex d flame proof housing such as SHB series and SO-I series which can withstand the mechanical pressure from the explosion inside the housing, or Ex e increased safety housing such as SHB-II series and SVM series whose electrical circuit are increased safety treated. The chamber for led lamp is designed with fins to reduce the temperatures for heat excellent dissipation performance. The chamber for connection is Ex d flame proof housing or Ex e increased safety housing with safe terminal blocks. No matter the housing inside explode or not, explosion proof high bay light can stop the explosion transmitted to the outside of housing to ensure the safety.

In a word, since we apply for explosion proof technology to stop the high bay light to become an ignition source to avoid the explosion in the site, then the high bay light could be explosion proof high bay light.

FAQs about Explosion Proof High Bay Lighting

What is flame proof light?

Flame proof light is the most important and typical type of explosion proof lighting, we also call Ex d light, which means all electrical parts of the light are put inside a high strength flame proof enclosure, when explosion occurs inside the enclosure, the flame proof enclosure can withstand the exploding pressure without any damage and transmit the exploding energy through designed flame proof path to a negligible scope to outside of the enclosure to eliminate the formation of the explosion outside the enclosure.

Are led lights flammable?

Led light is not likely to produce enough hot or high temperature to be flammable when considering the over-current and short-circuit condition since normally led lamp source are designed inside a certain housing to reduce the temperature rise with heat dissipation structure, especially for explosion proof led light, all led electrical parts is explosion proof protected for the utmost safety.

What is the difference between high bay and low bay lighting?

High bay lights are normally used for ceiling more than 20 feet, low bay lights are normally used for ceiling lower than 20 feet, anyway, this is a simple way to distinguish high bay and low bay, the exact ceiling height will be depended on the requested and actual lumens on the lighting areas. Moreover, high bay light have a built-in deep reflector to distribute the light down from a high ceiling, low bay light have normal reflector and lens to distribute the light down from a low ceiling.

What is a class 1 light fitting?

Class 1 definition come from the hazardous area classifications of NEC500 standard which classifies flammable substances into fours types, “M” for methane under mine, “class 1” for hazardous gas and vapor, “class 2” for hazardous dust and “class 3” for hazardous fiber, thus class 1 light fitting is explosion proof lighting specially used for hazardous locations which hazardous gas and vapor present normally and abnormally, but class 1 light fittings have two types, class 1 div 1 light fitting and class 1 div 2 light fitting. If the hazardous gas and vapor produce normally in the environment, you need to use class 1 div 1 light fitting, if the hazardous gas and vapor produce abnormally in the environment, you need to use class 1 div 2 light fitting.

How heavy can a pendant light be?

The weight of pendant light depends on types and wattages, in most case, lower than 10 pounds for commercial pendant light, around 10 to 20 pounds for industrial pendant light, about 20 up to 60 pounds for explosion proof pendant light. As for the wattages, the enclosure will be bigger and heavier size when the wattage is higher for the same type of pendant light.

If you need any kinds of industrial flameproof light, please contact us, as a professional industrial led light manufacturer, SUREALL Tech is willing to offer you high quality products.
