2000W SOLAR INVERTER WITH BATTERY CHARGE

Minimum Order
1
Packaging
N/A
Delivery
15 Days

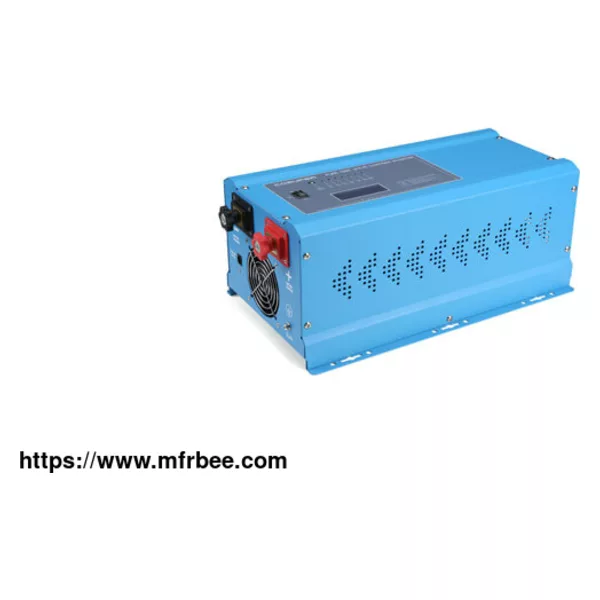

The Cosuper Inverter LPT2000 integrates the function of battery inverter, battery charger and automatic transfer switch into a single unit, which helps save

space and simplify installation by reducing the amount of equipment and cables installed, making it suitable for use in caravans, RVs, mobile homes and most household appliances (e.g. refrigerators, microwaves, TVs, power tools).

LCD digital display shows the information of battery voltage, output voltage, frequency and additional operation codes, which is convenient for inspection.

In standby mode, as long as the output power is larger than or equal to 50W, this power inverter with battery charger will automatically start to work, otherwise it will keep energy saving and can save you more on your energy cost.
FEATURES OF 2000W SOLAR INVERTER WITH BATTERY CHARGER

Multi-functions: Battery inverter, AC charger, AC bypass and UPS

Three stage battery charging mode, compatible with Gel, AGM, Flooded, Lithium batteries

Built-in auto transfer switch between DC power and AC power

Reprogrammable Interactive Display Control System CR10 for easy data reading

The bypass mode of this kind of pure sine wave inverter with battery charger
increases the efficiency and make the quality of the AC output the same as AC input
Electronic protection against Over/under voltage, overload, over-current, overheating, short circuit

2 years warranty


TECHNICAL SPECIFICATIONS OF 2000W SOLAR INVERTER WITH BATTERY CHARGER
Models LPT2000
Output Power 2000W
Surge Power 6000W
Output Voltage 100/110/120VAC±5%, 220/230/240VAC±3%
Oput Frequency 50/60Hz±0.5%
Output Waveform True Sine Wave(THD<5%)
Power Factor 0.1~1
DC Input Voltage 12/24/48VDC
Voltage Range 10.0~16.0/20.0~31.0/42.0~62.0VDC
Power Saving Mode <15W
Efficiency 110VAC 85%; 230VAC 85%
AC Charger
AC Input Voltage 90~135VAC/190~245VAC
DC Output Voltage Fast(14.0~15.1V), Float(13.3V~13.8V), (*2 for 24VDC, *4 for 48VDC)
Over Charge Protection 15.7VDC(*2 for 24VDC, *4 for 48VDC)
Charge Current 110VAC 70A/30A/15A; 220VAC 65A/30A/20A
AC Bypass
Transfer Time <8 ms
Input Volt. Waveform Utility AC or Generator (Sine Wave)
Max Bypass Current 20A
Control&Signal
LED Indicator Working Mode
LCD Screen AC Input, AC Output, DC Input, Output Frequency, Load Percentage, Working Mode, Fault Indicator
Remote Control(optional) CR10~11
Battery Type Manual Optional
Safety&EMC
Safety UL458, LVD (EN60950)
EMC FCC Part15 Class A, CE (EN55022:2006+A1:2007)
Environment
Operating Temp -20~50℃
Working Humidity 20~90%RH
Storage Temp -30~70℃
Other Information
Cooling Automatically controlled cooling fan
Weight(kg) 20
Size(mm) 500*255*185
Application Vehicle, Yacht, Solar power systems, Portable equipment, Power tools, Home and office appliances

As one of power inverter manufacturers, we will do our best to meet all the needs of customers.
