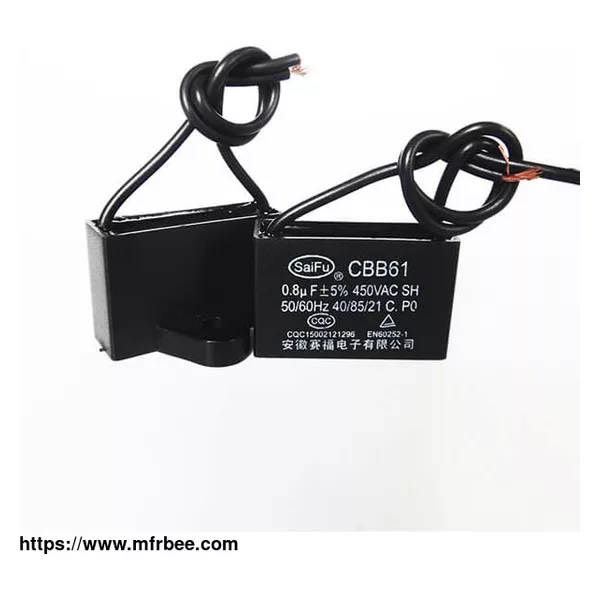

CBB61 Fan Capacitor with 2 Wires

CBB61 film capacitor is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

Specification of CBB61 Fan Capacitor With 2 Wires

Reference standards GB/T 3667.1（ IEC60252-1）

Climatic category 40 / 70 / 21, 40 / 85 / 21

Class of operation Class B (10000h) Class C (3000h)

Class of safety protection S0 /S3

Voltage range 250VAC, 370VAC, 440VAC, 450VAC

Capacitance range 1～35μF

Capacitance tolerance ± 5% , ± 10%., ± 15%

Dissipation factor 20 x10-4 (100Hz,20°C)

Test voltage terminal to terminal UTT 2Un for 2 seconds

Test voltage terminal to case UTC (2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds

Insulation resistance ≥3000s (100Hz，20°C, 1min)

Structure of CBB61 Fan Capacitor With 2 Wires

The capacitor core is wound by the metalized organic film.

Plastic shell, flame retardant epoxy resin potting, single capacitor core, or multi-capacitor core can be installed in one shell.

The installation components include plastic ears and iron ears.

The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

Dimensions(mm):

Specifications 450VAC 250VAC

1μF 37×13×23 37×13×23

1.2μF 37×13×23 37×13×23

1.5μF 37×14×25 37×13×23

2μF 37×16×28 37×13×23

2.5μF 37×18×28 37×14×25

3μF 47×18×29 37×14×25

3.5μF 47×18×34 37×16×28

4μF 47×18×34 37×16×28

4.5μF 47×22×34 37×16×28

5μF 47×22×34 37×18×28

5.5μF 47×22×34 37×18×28

6μF 47×22×34 47×18×29

6.5μF 48×26×38 47×18×29

7μF 48×26×38 47×18×29

8μF 48×26×38 47×18×34

10μF 58×26×44 47×22×34

12μF 58×26×44 47×22×34

15μF 58×26×44 47×22×34

16μF 58×26×44 48×26×38

20μF 58×35×49 48×26×38

25μF 58×35×49 48×26×38

30μF negotiable 58×26×44

35μF negotiable 58×26×44

Note: Other specifications, size and terminal outside the table are negotiable.

Features of CBB61 Fan Capacitor With 2 Wires

CBB61 capacitor 16uf 250vac is widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.

Self-healing property.

Good stability and reliability.

As a capacitor factory, we can provide kinds of industrial capacitors for sale, anything you need, please contact us.
