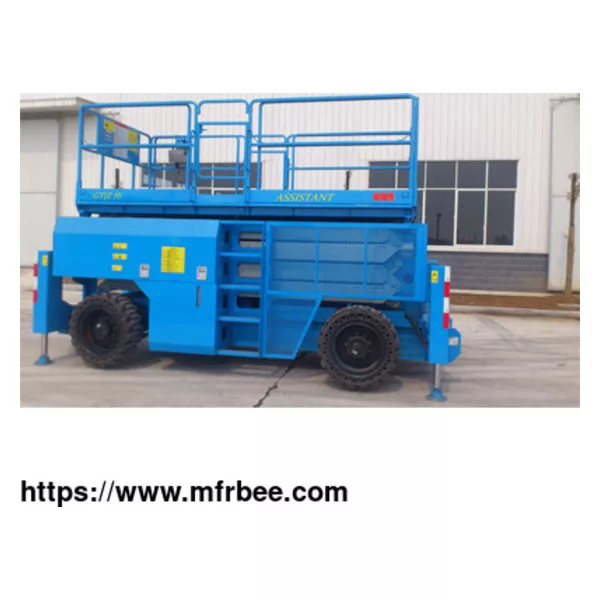

Diesel Engine Self Propelled Scissor Lift

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Omni Direction Self-Propelled engine scissor lift

OMNI DIRECTION SELF-PROPELLED ELECTRIC SCISSOR LIFTS

Diesel Scissor Lift GTJZ13-RT

DIESEL SCISSOR LIFT GTJZ13-RT

We are professional Diesel Engine Self Propelled Scissor lift supplier and factory in China. We can produce the product according to your requirements.

Diesel Engine Self Propelled Scissor lift

Product Features

Diesel scissor lift

1. Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.

2. Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.

3. Active Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force.

4. Large working space: The maximum size of platform extended by cylinder forward double direction can reach 6.65*1.83m.

5. Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground.

Techenical feature

1. Controlling System

Both ground control and platform control panel.

The ground control provides the lifting feature and the platform control panel provides all functions of lifting and/or descending, turning and travelling.

The one handed proportional joystick made by SAUER(USA) provides flexibility, and can be satisfactory for the operators in many different situations.

2. Platform and platform Loading Capacity

The loading capacity of the platform is up to 680kg-1180kg.

Platform extension part highly extends the working area.

3. Safety Performance

A safety bar has attached on the 2 nearby scissors, to guarantee the safety of the serviceman while repairing.

For the purpose of having a more stabilized working condition, the gravity of the entire machine is located on the under-part.

Double acting lift cylinders with lock valves and manual emergency lowering facility.

The downward movement shall be automatically stopped by a safety device, Further downward movement shall only be possible after 5s delay and the speed is lower(50%).

Techenical feature

Configration sandard

1. Engine: Perkins from UK 2. Pump: SAUER from USA Motor: SAUER from USA

Engine Engine

3. Travel reducer:PMP from Italy 4. Valve: Sant from Italy

Travel reducer Valve

5.Joystick: Danfoss from USA 6. Sensor: Meas from USA

For more information about pallet stacker forklift, please feel free to contact us!
