The backpack water mist fire extinguisher is suitable for extinguishing the solid, gas and electrical fire in warehouse, airport, coal, petrochemical, transportation, commercial place and civil
house. Especially in the narrow space, underground, vehicles and small range of A, B, C type fire fighting performance is more obvious. Early use fire extinguishing device in the forest natural
environment fire, backpack water mist fire extinguisher is an excellent choice.

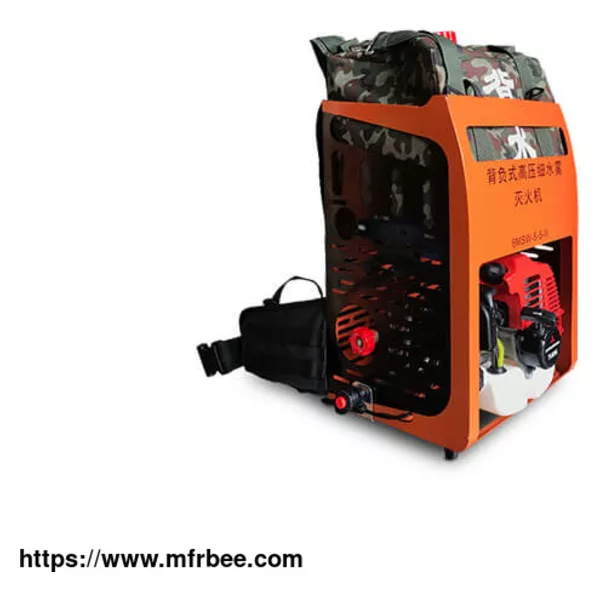

Backpack Water Mist Fire Extinguisher Parameters
The Engine Single cylinder air-cooled two-stroke engine
Length * Width * Height 572 x 320 x 306(mm)
Startup Performance 8S
The Water Volume 22L
Fuel Tank Capacity 0.6L
Maximum Pressure 5MPa
Horizontal Effective Range 9m
The Host Of 8kg
The Machine Frame Aluminum alloy corrosion treatment
Structure Split water bag and main engine
Configuration Equipped with operation instructions and notes label
Color The machine is orange-yellow warning color
Hexadecimal Multi-angle Sprinkler Head (1) Structure: rotating gear type six-hole structure, the nozzle body is made of aluminum alloy and anodized, the nozzle is stainless steel inset structure,
the nozzle is marked with 0°, 15°, 25°, 40°, 50°, 65° injection Angle, each gear corresponds to a jet Angle, can be manually rotated to replace gear, equipped with 1/4 inch quick plug connection
(2) Fan (15°) injection distance of 8m
(3) Fan-shaped (40°) injection distance is 7m
(4) Fan (65°) injection distance ≥5m
Features of Backpack Water Mist Fire Extinguisher
01
Double Fire Extinguishing Effect
This fire fighting safety equipment has fast cooling and wide coverage.
02
High Safety
Low pressure operation, no recoil, to ensure the safety of rescue workers.
03
Less Water Consumption
Less water consumption of knapsack bottle group, high use efficiency.
04
Rapid Response
The explosion proof devices can shorten the response time of rescue personnel, can enter the fire faster, improve the efficiency of fire fighting, the fire control in the initial stage.
For more information about what is the difference between intrinsically safe and explosion proof and intrinsically safe phone, please feel free to contact us!
