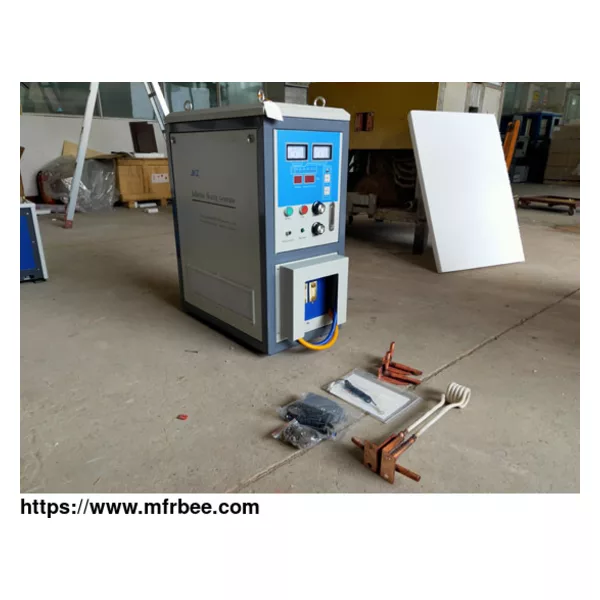

SWS-25A 15-30KHZ 25KW 36A Ultrasonic Frequency Induction Heating Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
SWS-25A 15-30KHZ 25KW Induction Heater
To realize the better performance of SWS-25A, JKZ has designed a fully digital control induction heating generator at the frequency range of 15~30KHz. It is designed with a maximum single machine
power of 250KW and can be integrated with a state monitoring system. After a long time of production and use, the circuit of our SWS-25A is still reliable and stable, and the maintenance is simple
and convenient.
The induction heating speed of this metal heating machine is fast and the energy-saving effect is obvious. The equipment can be equipped with a variety of remote control methods, which
significantly reduces the difficulty of automatic control. It runs fully automatically under the control of external systems such as PLC and is suitable for use in induction forging and induction
heat treatment applications.
Specifications of SWS-25A Ultrasonic Frequency Induction Heating Device
Input voltage 3 Phases 380V±10% 50/60HZ
Input AC current 36A
Output power 25KW
Output frequency 15-30KHZ
Duty cycle 100%
Power factor ≥95%
Cooling water pressure 0.2-0.3 MPa
Cooling water flow ≥1.7 m³/Hour
Application of SWS-25A Ultrasonic Frequency Induction Heating Machine
Brazing of carbide length 20-60mm
Welding of copper tube Ø15mm-Ø30mm
Melting of 15-20KG non-ferrous metal
Forging heating steel rods Ø10-30mm
Hardening steel rods Ø10-30mm at depth 2-5mm
Based on more than 20 years of experience in designing, manufacturing and maintenance for electronic induction heating equipment, JKZ Induction Heating can provide you a complete induction heating
equipment experience service. Our service staff will give customers a full response immediately, and meet the customer's various needs for induction heating equipment.
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:1993
- Address:NO.688th South baoguang Road, Xindu District,Chengdu,Sichuan ,China
- Contact:cn jkz
