Independent Air Suspension for 7-10m Bus System

Minimum Order
1
Packaging
wooden case
Delivery
30 Days

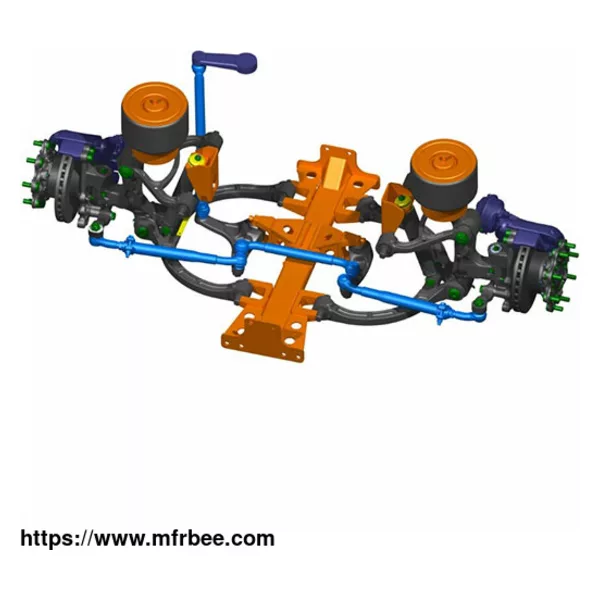

AFD050/055 series independent air bag suspension wholesale, high stiffness double A-arm structure, wide airbag span, low unsprung mass, small dynamic load impact, good vehicle ride comfort, good tire grounding.

This air suspension bus system is available to realize 3-stage and 2-stage steering transmission mechanism according to the requirements, which can meet the needs of large wheel angle, and has good steering performance. This independent air bag suspension is suitable for a channel width of 650-900mm and a maximum ground clearance of 350mm.

AFD050/055 series independent air suspension system can be matched with 19.5" and 22.5" disc brakes, which is more adaptable.

It is possible to install the United States ConMet integral oil-lubricated bearings, large heat capacity, wheel hub bearings are not easy to burn, this series of independent suspension systems can be universally matched with the city bus system and tourist vehicles.
Main Technical Parameters of Rear Suspension

Model AFD 050/055series
Suspension Height 270mm
Rated Load 4500~5500KG
Axle Travel 170mm(+85/-85)
Brake Specifications 19.5"/22.5"
Tire Specifications 265/70 R19.5 (275/80 R22.5)
Inner and Outer Wheel Corners AFD050:50˚/39.2˚
AFD055:48˚/39˚
Front Axle Positioning Parameters Toe:(0-2)mm
Caster angle:3.5˚±30′
Kingpin inclination:8.5˚±30′
Camber angle:0.5˚±20′


There are many air suspension manufacturers, but we are one of the best choices for you.
