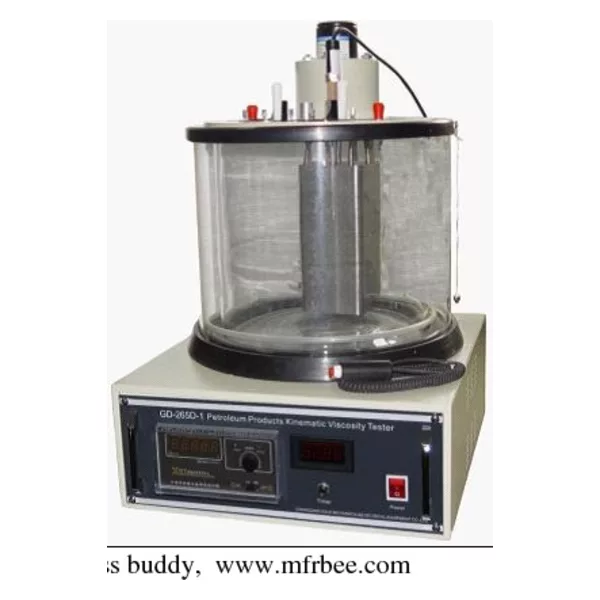

GD-265D-1 High Precision Kinematic Viscosity Test Equipment

I.Brief Introduction

• The instrument is suitable to determine the kinematic viscosity of liquid petroleum products (Newton liquid) under a fixed temperature environment as per GB/T 265 Standard Test Method for Kinematic Viscosity and Calculation Method for Dynamic Viscosity of Petroleum Products and ASTM D445.

II.Technical features
  1.The instrument is a kind of specially-made testing machine which the temperature control accuracy can reach ±0.01°C and having digital display.
  2.It adopts hard glass vessel and heat preservation cover(double-layer vessel).Good heat prevention and easy to observe the sample.
  3.It adopts desktop and all-in-one machine design,convenient to use.
  4.It adopts electric stirrer to ensure the uniform of bath temperature.

III.Technical specifications and parameters
  1.Power supply: AC 220 ± 10 %  50 Hz.
  2.Heating power: Auxiliary heater: 1000 W; Temperature Control heater: 600 W.
  3.Power for stirrer: 6W, rotating speed:1200RPM
  4.Temperature range: ambient~100 °C.
  5.Temperature control accuracy: ±0.01°C.
  6.Timer: 0.0s~999.9s
  7.Constant temperature bath: 20L, double layer.
  8.Ambient temperature: -10°C~+35°C
  9.Relative humidity: ≤85%
  10.Total power consumption: not higher than 1800W.
  11.Capillary viscometer: 7 pieces in total. The inner diameters are 0.6, 0.8,1.0, 1.2, 1.5, 2.0 and 2.5mm
  12.Overall dimension: 530mm*400mm*670mm(water bath is included)

IV.Why Choose Us:

• Always Customer First.
• Professional Testing Equipment Supplier,with  5 years experience in this field.
• Exllent after-sale service and Always Competitive Price.
• English  operating interface.
• Wtih In-house quality control.All the Equipments will be tested before leaving factory.
• All the Equipment has one year warranty.
