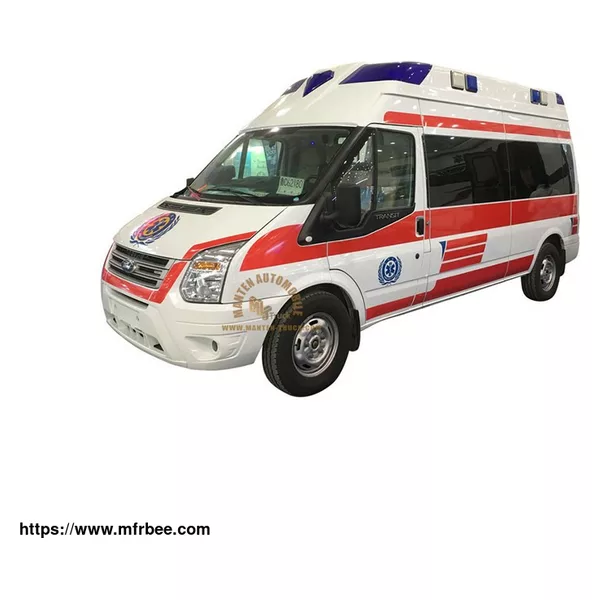

Negative Pressure Ambulance

Minimum Order: 2000

Packaging: N/A

Delivery: 30 Days

An ambulance negative pressure is a special vehicle for professional negative pressure rescuing applications and healthcare.

The biggest difference between the negative pressure type ambulance and the ordinary ambulance is "Negative Pressure Isolation"; The air pressure inside the medical cabin is lower than the external atmospheric pressure, and the air flow can only flow from the high-pressure side outside the medical cabin to the low-pressure side inside the medical cabin, so as to reduce the pollution to the external environment. After harmless treatment, the air inside the medical cabin will be discharged. In the treatment and transfer of special diseases patients, such as infectious diseases patients, the chance of cross-infection among medical staff will be reduced to the maximum, and the infectious source will be well controlled. The ambulance is also equipped with a ventilator, defibrillator monitor, ECG monitor and other full set of emergency equipment, installed ultraviolet disinfection lamp, central oxygen interface.

Different Types Of Negative Pressure Ambulance System

Ford Negative Pressure Hospital Patient Transit Ambulance

The isolation chamber is mainly suitable for the isolation and transportation of persons suspected or confirmed to be respiratory infectious diseases under toxic gas environment (such as gas bomb pollution.

Iveco Negative Pressure Ambulance

The chamber body is made of high quality durable and pollution-free transparent material, and the sealing zipper is used.

Specification Of Negative Pressure Ambulance

SPECIFICATION

Truck Specification

Product Name Transit Ambulance

Truck Manufacturer MANTEN GROUP

Chassis Specification

Chassis brand Dongfeng , Foton,JMC, FORD, IVECO, Sinotruk Howo, ISUZU, FAW ,NORTH BENZ, JAC, BEIJING,

Drive type 4X2, 4X4

Engine brand Cummins, ISUZU ,ford, BENZ, TOYOTA, Wechai, Yuchai, Yunnei

Transmission brand Fast ,ZF , Manual/ ATM

Tire brand Tri-angle, Double Coin, Good year ,Michelin

Upper body specification

Transit type Ambulance equipment 1. Portable folding stretcher;

2. One medicine cabinet;

3. One fixed installation oxygen cylinder;

4. Two infusion hooks;

5. One sterilamp;

6.one waste bin;

7. Two single seats;

8. One set long chair(2 seat cushion, soft back and seat belt);

9.one set middle partition with sliding window;

10. One set full blue warning lamp alarm on the top of the front;

11. Two 12V light lamps;

12. One inverter;

13.one group 220V power socket;

14. Medical wear-resistant plastic leather floor;

15. Sign the ambulance cross;

16. air conditioning and heater.

Other equipment opton Can be supplied as nee

Negative Pressure Ambulance Manufacturers & Suppliers

1.Technology requirements:

The national Ministry of Health requires: 20 air changes per hour, negative pressure between -10Pa and -30Pa, filtration and separation rate up to 99.9%;The negative pressure ambulance is only a method of physical isolation. The bacteria and viruses are intercepted on the surface of the HEPA filter and cannot be killed. The medical cabin of ambulance should be sterilized for after using.

2. Operating Principle:

Using the principle of hydrodynamics design, a fixed air flow field area is formed in the medical cabin through the balancing air pressure of HEPA filter, and the air flows from the clean area to the infected area.The air pressure in the negative pressure chamber is between -10pA and -120pa, which minimizes the dead Angle and vortex flow of the air flow.

Now the negative pressure ambulance cost is reasonable, if you have needs, please contact us.

As a truck factory, we will do our best to meet all the needs of customers.

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa,Asia,Americas
Founded Year:2021
Address:RM 2704, BLDG 3, WANJING INTERNATIONAL GARDEN,QINGNIAN ROAD,JIANGHAN DISTRICT WUHAN,CHINA
Contact:MAN TEN
