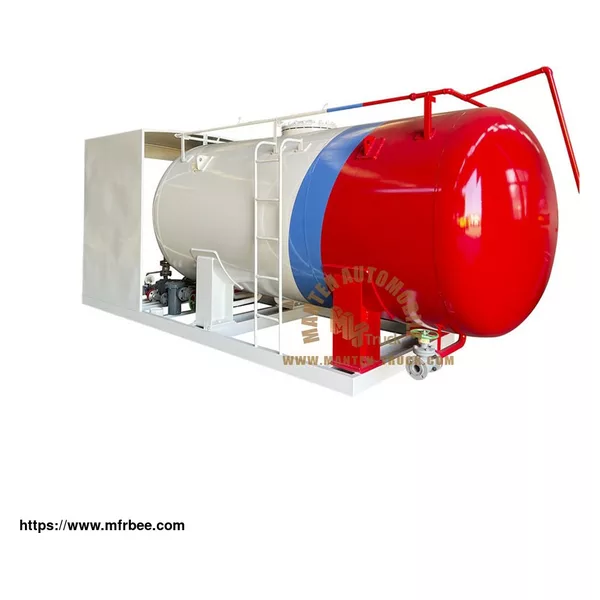

LPG Skid Station

HUBEI Manten Automobile produce the lpg skid filling station.It is similar to an integrated liquefied gas station, which integrates liquefied gas storage tanks, motors, pumps, compressors, electronic filling scales, valves and other equipment, and can directly fill liquefied gas cylinders.Standard configuration of LPG skid station: hydrocarbon pump, motor, pulley, base, alarm, frequency converter, control box, spray water pipe, float level gauge, pressure gauge, thermometer, safety valve, safety return valve, filter, check valve, ball valve, stop valve, pipeline safety valve, unloading pipe, shockproof pipe, flange, metal gasket, 8.8 bolts, electronic filling scale, pipeline, lower rack

Specification Of LPG Skid Station

SPECIFICATION

Tank Specification

Volume of Tank 5/10/15/20/25cbm

Filling Weight 2500/5000/7500/10000/12500kg

Tank Weight 2950/3050/5060/7500/8030kg

Thickness of Shell (mm) 10mm

Thickness of Endplate (mm) 10mm

Tank Diameter (mm) 1600mm

Material of Tank and Main Pressure Parts Carbon Steel Q345R/ ASME SA516

Filling Medium Liquefied Petroleum Gas ( Propane)

Design Pressure 1.77 MPa

Corrosion Allowance 1 mm

Medium Density 420-590 kg/ cbm

Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.

Other Equipment

LPG pump YQB15-5, 1 set

Motor 5.5kW 380V, 1 set

LPG dispenser LPG dispenser, double nozzle.

Inflatable gun 3 sets, can be equipped with professional interface,according to user requirements

Shockproof hose 2 liquid phase and 2 gas phase, stainless steel

Liquid level gauge Magnetic flip type and floating ball type

Thermometer m33x2

Pressure gauge m20x1.5

Spray device DN15 galvanized pipe surrounds the tank body for a week. When the temperature is high, the spray can be adjusted automatically to effectively reduce the temperature

Sun-shield it is made of 4mm thick aluminum plate to prevent the storage tank from overheating.

Pipes, valves, flanges and standard parts shall be provided according to the actual situation.

As a truck company, we can offer kinds of related products for sale, if you have needs, please contact us.
