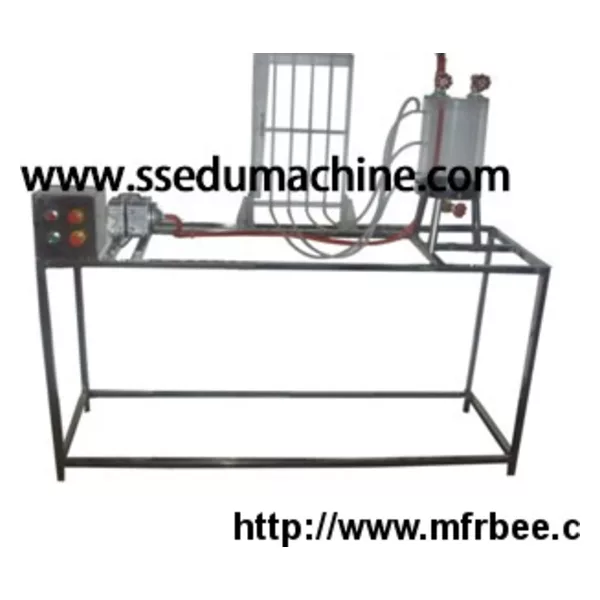

ZM2129 Pressure Balance Apparatus
I.Technical parameters |
1. Operating environment: temperature 0-40 degree, relative humidity: ≤90%RH, power supply: 220 v / 50 Hz,be able to continuous
operation.
2. Piezometric tube: ф 8 x 600 mm, 6 eas. 3. Experimental container: ф 200 x 300 mm, organic glass, containers are: air inlet port, liquid inlet port, liquid outlet. 4. Pump power: 35W, rated power: 220 v / 50 Hz, maximum pressure: 0.03 Mpa, the biggest displacement: 40 L/min. 5. Fluid, water used in the experiment designed for full cycle. 6. Other pipe, valve, the overall framework: stainless steel material. 7.Appearance dimension: 1000× 450× 450 mm. |
