Flow Meter Trainer

Place Of Origin
China
Packaging
Wooden Box
Delivery
30 Days

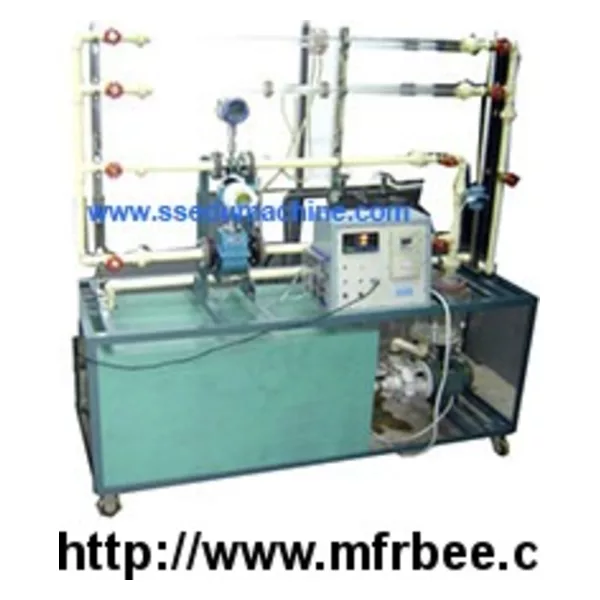

ZM2123 Flow Meter Trainer

I. Experiment
1. Be familiar with the structure of the orifice flowmeter and its application.

2. Master flowmeter flow correction methods.

3. Through the determination of the coefficient of flow metering, know the rule of variation of flow coefficient.

II. Technical specifications
1. The water pump: maximum flow 30 l/min, the highest lift 16 m, power 370 w, the working voltage 220 v, rotational speed of 220 r/min

2. The orifice hole diameter: dO = 8 mm, stainless steel material.

3. The venturi tube throat diameter: dV = 8 mm, stainless steel material.

4. The tank volume: 15 l, water storage tank: 20L

5. Fluid, water used in the experiment designed for full cycle.

7. The framework for stainless steel, compact structure, beautiful appearance, easy to operate.

8. Overall dimension: 2400mm×600mm×1800mm

Data acquisition model: computer, computer interface and data processing software, differential pressure sensor, the turbine flowmeter and flow integrating instrument. Can online monitoring of the differential pressure, flow, etc. The experimental data.
