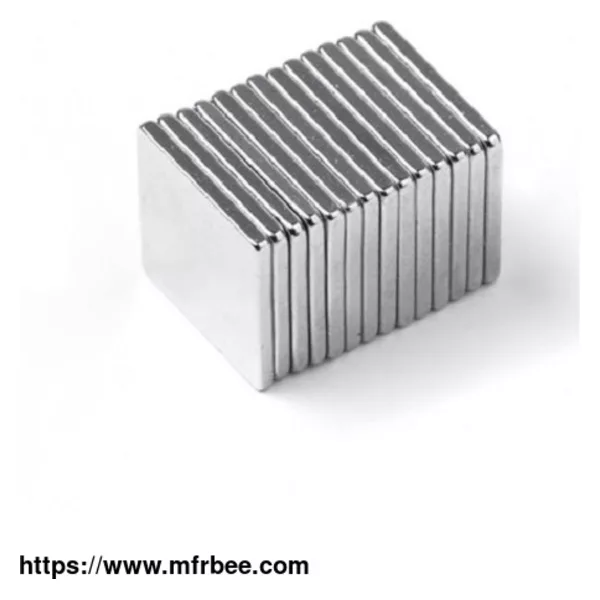

10x10x1mm Thin Square Neodymium Magnets

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

N42 Thin Square Rare Earth Magnets 10x10x1mm With Nickel Coating

Category Square Magnet

Material Sintered Neodymium, N42

Dimension 10 x 10 x 1mm

Magnetized Axially(Thickness)

Coating NiCuNi

Strength approx. 600g

Weight(1 piece) 0.75g

Tolerance +/-0.05mm

Max.Working Temp. 80℃

Central Surface Field 1160Gauss

10x10x1mm Square Rare Earth Magnets Description

Nickel Coated Thin Square Neodymium Magnet Blocks 10x10x1mm

Specification:

Product: Square Neodymium Magnet.

Size: 10*10*1mm ( 10mm Length x 10mm width x 1mm thickness)

Maximum Grade: N52

Surface Treatment: Nickel-Copper-Nickel (three layers coating)

Operating temperature: ≤80°C

Our N52 rectangular magnets are the strongest grade of neodymium magnets available. With their exceptional strength and durability, they are ideal for applications that require the highest level of holding power. Choose from a range of sizes to fit your project's specific needs. These rare earth magnets are perfect for industrial, scientific, and craft applications.

10x10x1mm Square Neodymium Magnets Feature

The square magnet is made of neodymium iron boron alloy. The center surface field of a n42 square neodymium magnet 10x10x1mm can reach more than 1100 Gauss. Because of its thin thickness, it is easy to be broken.The thin square neodymium magnets 10x10x1mm are used on package boxes

10x10x1mm thin rare earth neodymium block magnets with nickel coated

Square permanent magnets of rare earth neodymium 10x10x1mm

As a deep pot magnets factory, we can offer high quality products for sale, if you are interested, please contact us.
