Heat Resistant PVC Steel Wire Hose

Minimum Order: 3000

Packaging: CARTON

Delivery: 30 Days

BUY heat resistant hoses from SUZHOU SEAPEAK!

High-Temperature resistant flexible steel wire hose is made of good zinc plated metal wire and qualified heat resistant PVC compound.

As one of professional pvc hose pipe manufacturers in China, SUZHOU SEAPEAK has high-quality heat resistant hoses for sale. You can check the details of heat resistant plastic tubing below. Or you can contact us directly.

The heat resistant flexible plastic tubing can be used under 100 ℃ condition, which is suitable for different high temperature environment. The heat resistant PVC steel wire hose (heat resistant flexible tubing) is widely used for suction and discharge of water, oil and powder in the factories, agriculture, engineering, foodstuffs and sanitation lines.

SUZHOU SEAPEAK, as one of professional hose manufacturers, can provide you with high-quality high temperature flexible pipe according to your needs. You can check the specifications of our fire/heat resistant flexible hose pipe. If you have any questions about SEAPEAK heat resistant pipe, please feel free to contact us.

Specification of Heat Resistant PVC Steel Wire Hose

Inch I.D.mm O.D.mm Length MAX.W.P.(BAR) MAX.B.P.(BAR) Weight(G/M)

3/8" 10 16 100 8 24 200

1/2" 12 18 100 8 24 220

5/8" 15 22 50 6 18 300

3/4" 19 26 50 6 18 360

3/4" 20 26 50 6 18 320

7/8" 22 27 50 6 18 300

1" 25 33 50 5 16 540

1-1/4" 32 40 50 5 16 700

1-1/2" 38 48 50 5 15 1000

1-3/4" 45 56 50 5 15 1300

1-7/8" 48 59 50 5 15 1400

2" 50 62 50 5 15 1600

2-5/16" 58 69 40 4 12 1600

2-1/2" 64 78 30 4 12 2500

3" 76 90 30 4 12 3000

3-1/2" 90 108 20 4 12 4500

4" 102 116 20 4 12 4300

Characteristics of PVC Heat Resistant Hose

High temperature flexible pipe uses special PVC material that is heat resistant. The high heat flexible hoses are robust and abrasion resistant. The inside wall of the fire resistant flexible hose is smooth. The temperature range is from -10ºC to +60ºC.

Applications of PVC Heat Resistant Hose

The application field of the heat proof rubber hose can be generally classified into two parts, one is food grade application and the other is non-food application. For application in food, the fireproof hose is mainly used for the delivery and suction of foodstuffs and drinkable water etc. With regard to the non-food application, the heat resistant tubing can be used for suction and discharge of water, oil and powder in the factories, agriculture, engineering lines.

Structure of PVC Heat Resistant Hose

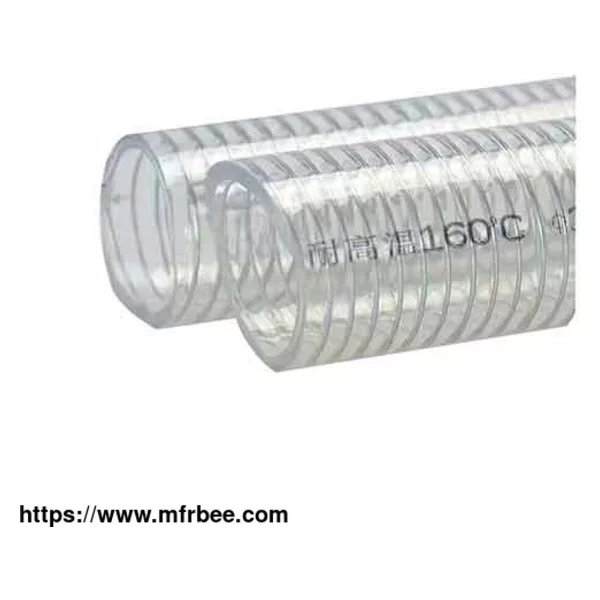

The structure of the heat resistant flexible tubing is mainly the transparent PVC hose reinforced by embedded steel wire.

Buy high temperature resistant hose from SEAPEAK! Don't hesitate to contact us!
