ZMIN-D51 NRS DIN3352 F5 Flanged Gate Valves

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

DIN3352 is the production standard of the German standard valve, which includes metal sealing valves and soft sealing valves.

F5 is the face-to-face length of the German standard valve, which is included in the DIN3202 standard, and the corresponding is F4. In contrast, the F5 structure length is longer than the length of F4.

NRS is a Non-Rising Stem, which refers to a Non-Rising gate valve. The Non-Rising gate valve is also referred to as a rotary gate valve, which is rotated during the opening and closing process. The handwheel drives the valve stem rotation, the valve stem is driven up and down, and the switching process is completed. When the non-rising gate valve is opened, the valve stem is only rotating, there is no action of up and down.

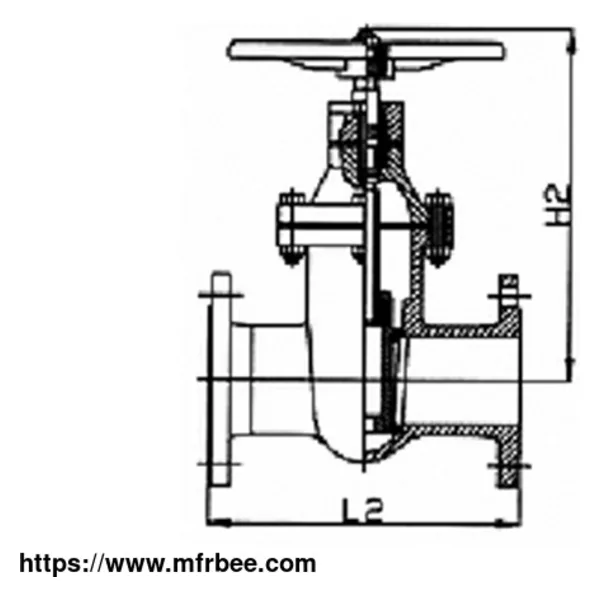

ZMIN-D51 NRS DIN3352 F5 Flanged Gate Valves Dimensions

NRS DIN3352 F5 Flanged Gate Valves VS O.S.&Y.

1. Material:

The body material of NRS DIN3352 F5 Flanged Gate Valves VS O.S.&Y. can be CI/DI/WCB/SS, compared the weight, the same size O.S.&Y. gate valve is heavier that NRS gate valve

2. Pressure:

Both NRS DIN3352 F5 Flanged Gate Valves VS O.S.&Y. DIN3352 F5 flanged gate valve pressure can be PN10/16.

3. Range of Applications (Similarity and Difference):

Stardard:DIN 3352

Face to face:DIN 3202 F4/F5

Connection flange type:DIN standard

4. Installation (Similarity and Difference):

The height of the non-stem&yoke gate valve is lower than the rising stem, suitable for installation on the ground, while the opening time is short, suitable for large diameter or limited installation space installation environment

ZMIN-D51 NRS DIN3352 F5 Flanged Gate Valves FAQs

1. What is the Function of Gate Valves?

Gate valves are generally used to completely shut off fluid flow or, in the fully open position, provide full flow in the pipeline. Thus they are used either in fully closed or fully open positions.

2. Will You Arrange Pressure Test for Gate Valves?

Yes. Before shipment, we will arrange the pressure test for each piece of gate valve to avoid the leakage problem.

We can also offer sorts of flanged globe valves for sale, if you are interested, please contact us.
