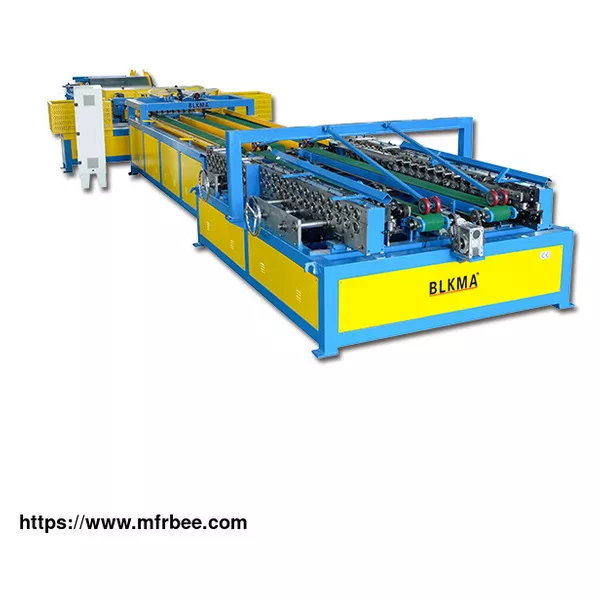

Auto Duct Production Line 4

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

It's mainly for uncoiling, leveling, beading, punching, locking, bilaterally angle steel or TDF flange forming. Because of its small space requirement and easy to install and operate, people also call it "small line 5".

Auto Air Duct Fabrication Machines 4 Performance Features:

The function of auto cnc duct fabrication machine 4 mainly includes unwind, leveling, beading, notching, locking and flange forming. The main machine of auto duct line 4 is used to level, bead, notch, and shear. All the rolling reels are made of bearing steel so that the lifetime will be prolonged. The injection holes are used on both sides of the drive shaft to enhance the bearing life. There is the material-saving mode. The machine can withdraw sheet metal automatically. Besides, the auto duct line 4 machine has the production record function. The operator can check production order. The imported configuration includes Germany Festo cylinder, Bejing Huade and Taiwan hydraulic system, Taiwan Hiwin linear guideways and Schneider electric system. Cnc system is Japan Mitsubishi. Meanwhile, the basic configuration includes two electric material racks (4 material trays, 5-7T each roll), one rack, one main machine (line 2 host), one mechanical arm for clutching, locating and transferring, one lock forming machine, one duplex TDF flange forming machine, one duplex angle steel flange forming machine and a set of computer controlling system. The operator can use the auto duct line 4 machine with other square duct machines, for example, hydraulic/pneumatic/manual folding machine, hydraulic/pneumatic/electric lock seam closing machine, corner punching machine, corner assembly machine and so on together to complete the whole duct. The line 4 machine can make max sheet thickness 1.2 mm. For sheet width, there are two models that can be chosen, max width 1300 mm or max width 1500 mm. Our company can provide customers different choice according to different requirements. You can contact us at any time you want via email, mob, WhatsApp, Skype, facebook, youtube and WeChat if you have any question about HVAC duct manufacturing equipment. Besides, we can provide engineer overseas service if customers need.

Auto Duct Production Line 4 Main import Configuration:

Cylinder imported from Germany Festo

Mitsubishi CNC control system

Japan Omron encoder

Taiwan Hiwin linear guideways

Schneider electrical system

Auto Duct Production Line 4 Basic Configuration:

Two electric coil cradles, 4 material trays (5-7t each roll)

One rack

One host (line 3 host)

One mechanical arm clutching, locating and transferring platform

One displacement type locking machine

One duplex TDF flange forming machine

One duplex angle steel flange forming machine

One set of computer controlling system

Auto Duct Production Line 4 Main Technical Parameters:

Now the price of hvac duct fabrication equipment is reasonable, if you have needs to buy ductwork fabrication equipment , please contact us.

Anhui BLKMA heavy industry machinery Co.,ltd. is located in the center of China's machine tool industry, Ma'anShan BoWang District Dongcheng Industrial Park. It is very convenient only takes 20 mins to Nanjing Lukou International airport and connected with Jiangsu, Zhejiang and Shanghai. We are one of the leading manufacture in duct forming machine since 1994.

More kinds of spiral duct machine, please visit our website.
