Narrow Aisle Lift Truck

FOB Price
USD $50.00 / Piece
Minimum Order
1
Packaging
NUDE
Delivery
30 Days

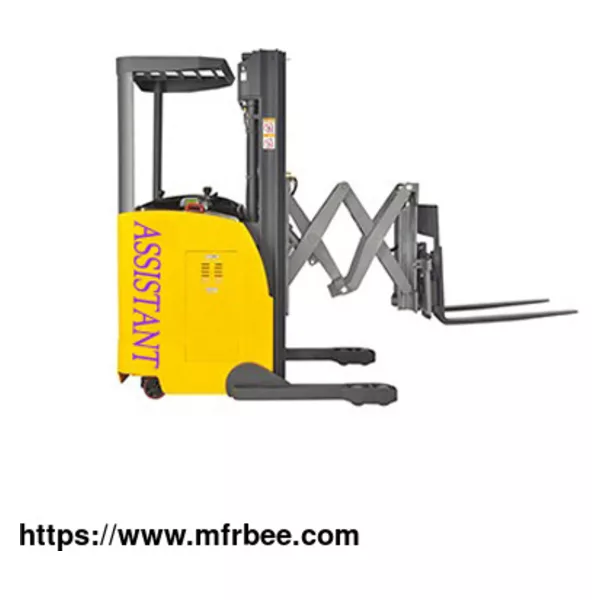

Narrow Aisle Reach Forklift CQDH15C (double scissors) Detailed Specifications
Model CQDH15C (double scissors)
Drive type battery battery
Load capacity/Rated load Q(kg) 1000 1000
Load centre distance c(mm) 500 500
Load distance, centre of drive axle fork x(mm) 159 135
Tyre size, front mm 280×82+160×60 280×82+160×60
Tyre size, rear mm 125×82(4) 125×82(4)
Wheels, number front rear(x=driven wheels) 1+2 1+2
Tilt of mast/fork carriage forward/backward) Grad 2/5 2/5
Height, mast lowered h1(mm) 2375 2125 2625 2675 2345 2185 2505
Free lift h2(mm) ~ ~ ~ 2000 1700 1575 1825
Max. lift height h3(mm) 3500 3000 4000 4500 5000 5500 6000
Height, mast extended h4(mm) 4535 4035 5035 7035 6035 5535 6535
Height of overhead guard h6(mm) 2246 2246
Overall width b1/b2(mm) 1308 /1040 1370/1040 1308/1040
Overall length l1(mm) 2585 2609
Length to face of forks l2(mm) 1515 1539
Fork Dimension s/e/l(mm) 35/100/1070 35/100/1070
Reach distance l4(mm) 1200 1200
Fork height, lowered h8(mm) 130 130
Distance of “X” (see below diagram) mm 350 350
Overall length (excluding the fork) mm 1868 1868
Ground clearance, centre of wheelbase m2(mm) 65 65
Aisle width for pallets 1000×1200 crossways Ast(mm) 2951 2971
Aisle width for pallets 800×1200 lengthways Ast(mm) 3034 3056
Turning radius Wa(mm) 1718 1718
Travel speed, laden/unladen Km/h 6.5/7 6.5/7
Lift speed, laden/unladen m/s 0.135/0.16 0.135/0.16
Lowering speed, laden/unladen m/s 0.15/0.12 0.15/0.12
Battery voltage, nominal capacity K5 V/Ah 24/420(560) 24/420(560)
Battery weight kg 450 450
Battery dimension l/w/h mm 770x336X610 770x336X610
Service weight (with battery) kg 2530 2480 2590 3030 2830 2730 2930

We can also offer kinds of attack forklift for sale, if you are interested, please leave us a message.
