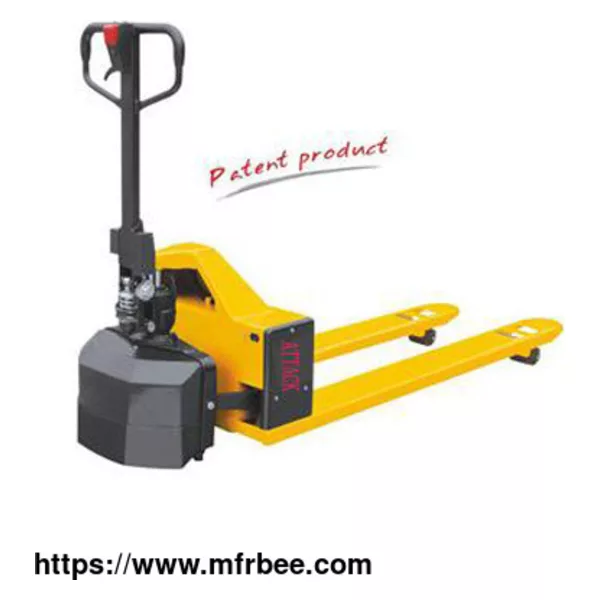

Semi-electric Pallet Truck CBD10A-II

FOB Price
USD $50.00 / Piece
Minimum Order
1
Packaging
NUDE
Delivery
30 Days
Description
: We are professional Semi Electric Pallet Truck CBD10A-II supplier and factory in China. We can produce the product according to your requirements.

Product Features

Two-speed driving system.
Emergency brake switch.
Manual lifting and motor driving.
AC motor,no carbon brush,maintenance free,low noise.
Sealed batteries free of maintenance,safe operation and no pollution.
Built-in charger.
Conform to EN 1757-2.

Parameters
Model CBD10A-Ⅱ
Load Capacity Q(kg) 1000
Load centre distance c(mm) 500
Lowered fork height h13(mm) 85/75
Wheelbase y(mm) 1280/1350
Tyre size,front mm Φ175
Tyre size,rear mm Φ80/Φ74
Max. lift height h3(mm) 200/190
Height of tiller in drive position min./max. h14(mm) 1244
Overall length l1(mm) 1685/1755
Length to face of forks l2(mm) 535
Fork dimensions s/e/l(mm) 45/160/1150(1220)
Width overall forks b5(mm) 520/550/680
Ground clearance,centre of wheelbase m2(mm) 30/20
Aisle width for pallets 1000×1200 crossways Ast(mm) 1885/1955
Aisle width for pallets 800×1200 lengthways Ast(mm) 1935/1955
Turning radius Wa(mm) 1490/1560
Travel speed,laden/unladen Km/h 2.6/3.8
Max.gradeability,laden/unladen % 5/15
Drive motor rating S2 60 min kW 0.5
Battery voltage,nominal capacity K10 V/Ah 24/38
Battery weight kg 26
Service weight (with battery) kg 150

Now the price of semi electric hand pallet truck is reasonable, if you have needs to buy high quality semi electric pallet jack, please contact us.

If you want to know more kinds of attack forklift, please visit our website.
