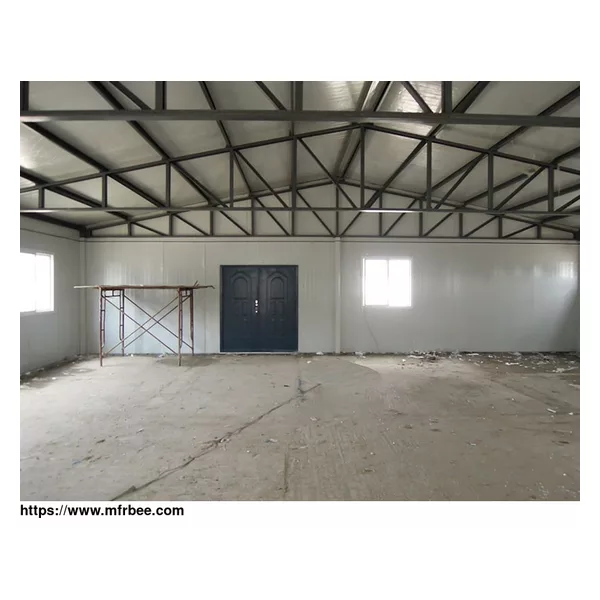

Prefab Steel Warehouse

China steel frame warehouse is a kind of new concept of environmental protection and economic movable house with light steel as the framework, sandwich board as the enclosure material, with standard module series for space integration, members are connected by bolts.

It can be assembled and disassembled conveniently and quickly, realizing the general standardization of temporary buildings, establishing the concept of environmental protection, energy saving, fast and efficient construction, and making temporary houses enter a series of development, integrated production, supporting supply, inventory, and availability. Styling product stage used in multiple turns.

At present, in our product range, K Type Steel Prefab House for Warehouse and T type Structural Steel Frame House is available as the warehouse purpose for you selection.

Product Parameters of Prefab Metal Warehouse Building

Prefab Steel T Type Warehouse/Garage/Workshop Technical Specification

No. Sort Name Specification

1 Product Type Degree of Standardization custom-made product,design and manufacture according to clients requirement

2 Size Length (m): No limited, increase expansion joint when length more than 200m.

3 Width(m): single span should be less than 12m, an arbitrary width could make by union spans

4 Heigth(m): single floor≤5m, two or three floors, average height ≤4m

5 Roof slope: slope is 1:10~1:5

6 Floors: less than 3 floors

7 Standard equipment Ground channel Galvanized steel panle compression, thickness is 0.8mm

8 Post Inside post is steel square pipe,material is Q235,components surface make antirust process,and decorate with color steel compression parts.

9 Roof beam roof truss consist of thin sharpe steel by welding,component surface make antirust process

10 Purlin purlin is Ctype steel,material is Q235,components surface make antirust process.

11 Wall beam wall beam is Ctype steel or square pipe,material is Q235,component surface make antirust process

12 Floor made of floor master beam, secondary beam and floor surface plate(plywood)

13 wallboard 50~150mm thickness double surface color steel sandwich panel,white color

14 roof board 50~150mm thickness double surface color steel corrugated sandwich panel,blue or red color

15 door color steel sandwich panel door,size:750mm*2000mm;

16 window PVC sliding window, with steel screen.

17 Options Ceiling mineral wool acoustic panel,aluminium buckle panel,PVC ceiling

18 Elevation floor Design based on local weather condition.

19 Canopy color steel sheet or color steel sandwich panel canopy

20 door compound wooden door,security door,aluminium alloy door

21 Electrical accessories Supply plan,design and construction according to relevant national norms(220V,50Hz,with lamp, switches and multi-function sockets.)

22 Water plumbing accessories Supply plan,design and construction according to relevant national norms

23 Sanitary ware Supply according to customer needs

24 Furniture and electric appliance Supply according to customer needs

25 Design technical data Roof dead load 0.3KN/sqm

26 Roof live load 0.5KN/sqm

27 Floor dead load 0.5KN/sqm

28 Floor live load 2KN/sqm

29 Wind load 12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)

30 Earthquake resistant intensity 8 degree

31 Used for temperature Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)

32 Installation Installation tools electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.

33 Installation efficiency Four skilled labor one day can erect 40m2\'s house body

34 Transport container each 40ft container could load 130~150Sqm house body material

Prefab Steel K Type Warehouse/Garage/ Workshop Technical Specification

No. Classify Name Technical Parameter

1 Size Length NK+160(n=4, 5, 6^ ) K is modular(1K=1820mm)

2 Width 2K≤ Width≤ 6K, K is modular(1K=1820mm)

3 Wall Height single floor height less than 6K

4 Roof Slope 1: 10, 1: 5

5 Interior Net Height ≥ 2780mm(not include false ceiling size)

6 Floor ≤ 3 floors

7 Standard Ground Beam C80#profiled steel

8 Post double C80# profiled steel

9 Roof Beam Herringbone Trussed Beam (jointing by C80# profiled steel)

10 Roof Purlin 40# angle iron

11 Wall Panel 50, 75mm thickness double color steel sandwich panel

12 Roof Panel 50, 75, 100mm thickness double color steel sandwich panel

13 Exterior Door Steel frame sandwich panel door, szie: 820mm*2000mm

14 Interior Door Sandwich panel door, size: 750*2000mm

15 Window PVC sliding window, size: 1740mm*925mm

16 Floor 15mm thickness plywood

17 Options Flase Ceiling mineral wool acoustic panel, aluminium buckle panel

18 Window PVC casement window, PVC top hung window, aluminium sliding window, aluminium alloy casement window, blind window

19 Door Single opening security door, size: 900mm*2100mm;

double opening security door, size: 1740mm*2100mm; compound wooden door

20 Interior Electrical supply plan, design and construction

21 Water Plumbing & Sanitary supply plan, design and construction

22 Floor 15mm bamboo panel, building templet board

23 Floor Decoration Material Ceramic tiles, PVC floor, compound wooden floor

24 Frame Roof Dead Load 30kg/Sqm

25 Roof Live Load 50kg/Sqm

26 Floor Dead Load 50kg/Sqm

27 Floor Live Load 200kg/Sqm

28 Wind Resistance 11 degree (105km/h)

29 Fireproof Degree Maintenance wall panel is nonflammable material, B1 degree;

Floor plywood could reach B1 degree after making fireproof process.

30 Earthquake resistant intensity 7degree

Advantages of Prefabricated Warehouse Steel Structure

Steel structure, can be built into 60-240 square meters, clean health, indoor facilities, mobile home beautiful appearance, novel design, elegant, energy-saving environmental protection, heat preservation performance is good, warm in winter and cool in summer, typhoon and earthquake resistant living comfortable warmth, trailer design according to customer requirements installation, its stability is strong, long service life.

As a warehouse/garage/workshop, especially suitable for the site, easy to assemble, easy to move.

As steel frame warehouse supplier, we can offer professional steel frame warehouse design for clients, and the steel frame warehouse price is reasonable, if you have needs, please contact us.

If you want to know more kinds of building with steel frame, please visit our website.
