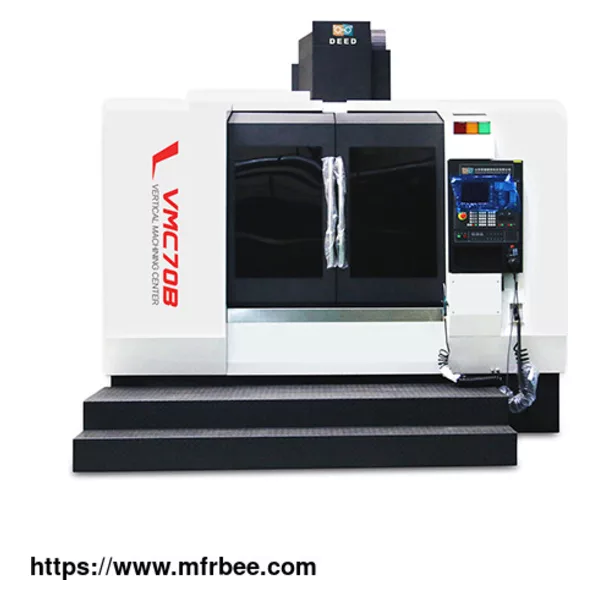

VMC-SERIES VERTICAL MACHINING CENTER

As a vmc machining center manufacturing company, DEED VMC-series VMC vertical machining center is mainly suitable for processing complex parts such as plates, discs, molds, and small shells. The vmc milling machine can complete the processes of milling, boring, drilling, tapping, and thread cutting.

VMC-SERIES VERTICAL MACHINING CENTER SPECIFICATION

VMC50B

VMC60B

VMC70B

VMC50B VMC50B VMC50B

Spindle type Direct connection Direct connection Direct connection

Spindle taper BT40 BT40 HSK A63

Spindle speed 10000 12000 20000

Main motor power 11/18.5 11/15 20/24

Spindle Torque 52.5/118 70/95.5 30.7/36.8

From spindle nose to worktable face 150-750 150-750 150-750

X/Y/ZTravel 850/500/600 850/500/600 850/500/600

Worktable Size 950×500 950×500 950×500

T-slot 18×4×100 18×4×100 18×4×100

Worktable Load 600 600 600

Rapid Traverse 40/40/32 40/40/40 40/40/40

Feedrate speed 1-20000 1-20000 1-20000

Acceleration 4 5 5

Positioning Accuracy 0.006 0.006 0.006

3-axes Repeatability Accuracy 0.004 0.004 0.004

ATC Capacity Disc type / 24t Disc type / 24t Disc type / 24t

ATC Φ78/Φ150/ 300 Φ78/Φ150/ 300 Φ78/Φ150/ 300

Larger tool weight (kg) 8 8 8

Required air pressure (MPA) 0.65 0.65 0.65

Power capacity 25 35 45

Machine weight 7500 7500 7500

Machine size（length*width*height） 3000×3200 3000×3200 3000×3200

Machine height 3100 3100 3100

If you are looking for a reliable cnc machining center factory, please choose us, and we will be your best partner.
