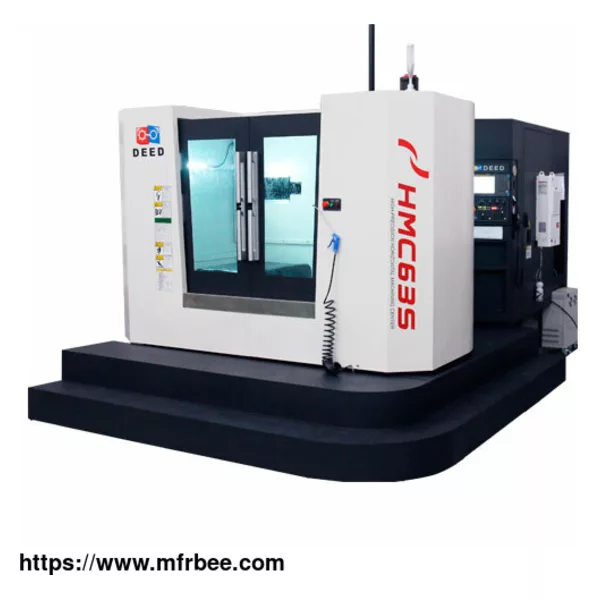

HMC-S HORIZONTAL MACHINING CENTER WITH PALLET CHANGER
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 1-3 months
Specifications
DEED horizontal machining center with pallet changer mainly used for the processing of box, shell, and special-shaped parts in automobiles, motorcycles, especially auto engine shell, reducer shell,
mold, and general machinery industries. Our horizontal machining cnc centre for sale is at a good price. Contact us for competitive DEED CNC HMC machine price now!
HMC-S HORIZONTAL MACHINING CENTER WITH PALLET CHANGER SPECIFICATION
HMC63S horizontal machining center with pallet changer
HMC80S horizontal machining center with pallet changer
TRAVEL
X-axis travel 1050mm
Y-axis travel 800mm
Z-axis travel 950mm
Spindle center to table surface 120～920 mm
Spindle nose to table surface center 200～1150 mm
Maximum workpiece height 1050mm
Maximum workpiece diameter 1000mm
SPINDLE
Drive type Belt drive
Spindle taper BT50
Max. Speed 6000 rpm
Spindle Power 15/18.5 kW
Spindle Torque 143/236 Nm
TABLE
Size 630x630mm
Max load 1200kgs
No. of table 1
Minimum scale degree 1°
FEED
Max. cutting speed 0-10000 mm/min
Rapid traverse 24/24/24 m/min
ACCURACY
X/Y/Z Axis Positioning 0.01mm
X/Y/Z Axis Repeatability 0.006mm
B Axis Positioning 10"
B Axis Repeatability 3"
ATC
Type Disc type ATC 24T
Maximum tool size(full/unfull/length) Φ112/Φ200/350
Maximum tool weight 15kg
Min. Time of Tool Change 7s
Inquiry competitive horizontal machining center with pallet changer-HMC machine price!
Most Required CNC Machines
5 axis gantry type machining center
Horizontal boring and milling center
CNC drill tap machine
CNC horizontal turning center
planer type horizontal boring machine
Technology Upgrade of horizontal machining center with pallet changer
As a cnc machining center factory, Deed CNC introduces its cutting-edge horizontal machining center with pallet changer, revolutionizing manufacturing efficiency. This innovative system markedly
enhances production capabilities by allowing simultaneous machining on one pallet while loading and unloading workpieces on another. This intelligent design minimizes machine downtime and optimizes
the machining center's throughput.
The pallet changer system plays a pivotal role in elevating production efficiency. By facilitating seamless workpiece pre-loading and unloading during the machining process, it mitigates the need
for manual intervention, thereby reducing the risks associated with human errors. Moreover, this automation significantly contributes to the reduction of part processing cycle times, amplifying
overall productivity.
The benefits extend further, as the pallet changer system also empowers the horizontal machining center with pallet changer with heightened adaptability. It accommodates a diverse range of
workpiece types and sizes, fostering a greater degree of production versatility. This adaptability not only streamlines the transition between different tasks but also optimizes the use of the
machining center's capabilities.
Embracing Deed CNC's horizontal machining center with pallet changer represents an investment in seamless automation, precision, and productivity. By maximizing machine utilization, minimizing
idle periods, and reducing the need for manual interventions, this advanced system stands as a testament to Deed CNC's commitment to shaping the future of manufacturing technology.
