| Model # | HK-HT-HD220(-P) |
| System | Embedded RTOS design, dual core 32-bit DSP(TI DAVINCI DM368F) |
| Pixel | 2.0 Mega Pixel |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | IR ON 0Lux |
| Lens | HD 12mm, 4/6/8/12/16mm (optional) |
| Lens interface | CS |
| Day&Night | IR-cut |
| Compression |
| Video Compression | H.264 High Profile, JPEG Screen shot |
| Main/Extra Stream | 1080P(1920*1080)/D1(704*576) |
| Video output bit rate | 32Kbps~16Mbps |
| Audio Compression | G.711a |
| Image |
| Max. Resolution | 1920*1080 |
| Frame Rate | 25fps(1920*1080) |
| Image Setting | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Network features |
| Storage | Network storage, TF card storage(optional) |
| Intelligent Alarm | Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP |
| Basic | Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection |
| NVR/HVR | YES |
| Mobile Monitor | Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) |
| ONVIF | 2.0 |

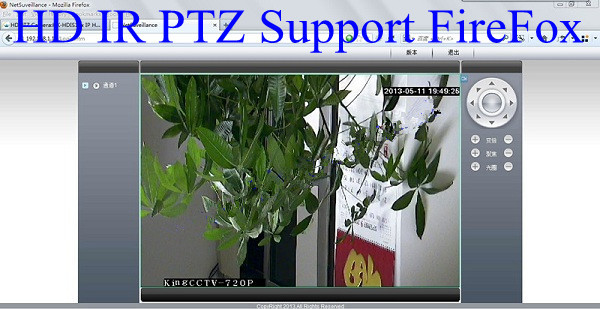

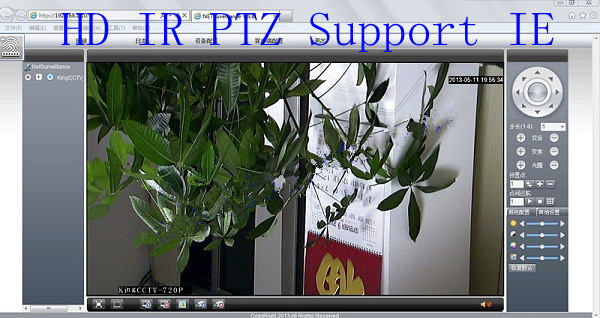

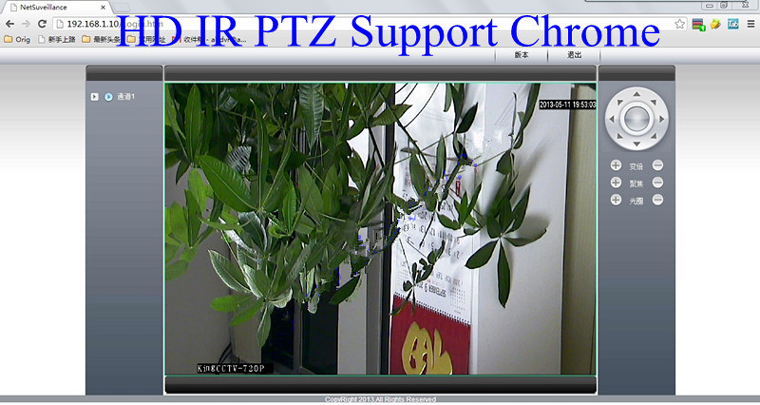

| Multiple Browsers | FireFox, Chrome, Internet Exploerer |
| Interface |
| Communication Interface | 1pc RJ45 10M/100M self-adaptive Ethernet interface |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| General parameters |
| Operating Condition | -10~60 °C, Humidity 90% or less(non-condensing) |
| Power Supply | DC12V±10% |
| Power Consumption | 6W MAX |
| Protection Range | IP66 |
| LED | 2pcs IR Array LEDs, IR distance 40M |
