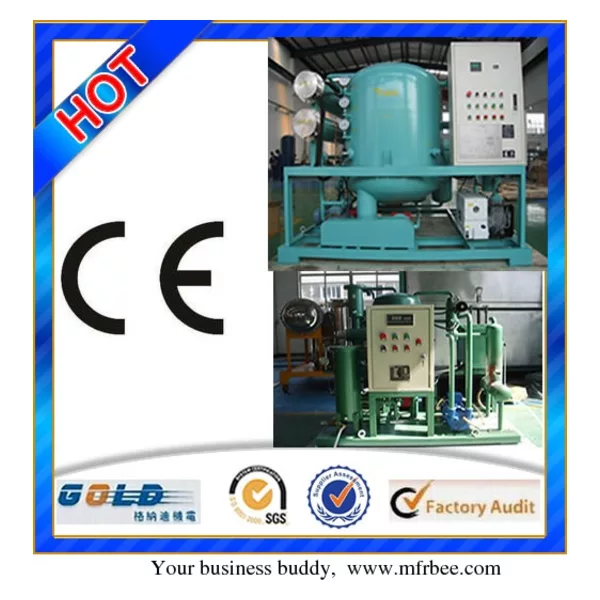

ZJC-R Series Vacuum Purifier Specially for Lubrication Oil
Product Features:
1. As a new product, it is suitable for treatment of oil with high viscosity.
2. As the new technology, vacuum-segregating (Patent No. ZL200420061085.6) employs a particular stainless steel,foldable column for dehydration and degassing ,and enlarges the area of separatingto facilate three-dimensional evaporation, so as to abtain enough time for degrassing and achieve the best effect of separation.
3. Using new type of heating equipment (Patent No. ZL02276238.8), which has low heating load and is able to prevent oil from ageing.
4. It uses an imported liquid ring vacuum pump and takes cooling liquid (or water) as a lubracating meduim. Thus it wont matter if gas enters the vacuum pump, and users need not to bother to replace the medium-functioning oil in the roatry vane vacuum pump.
5. Oil level control adopt photoelectric way ( the main components is imported from Switzerland )and features a very sensitive precise control. Even foams can be sensed, and thus there is no possibility of oil spray.(spray free patent No. ZL200420060973.6).
6. It uses a special high-vicosity oil feed pump and a special sealing treatment. It is free from oil leakage, low in operation noise, and long in useful life.
7. It also features a scientifically designed precision filtering element. In this filter, China-made filtering elements can be inter-replaced with italy imported ones so that users can resort to a suitable filter material according to thei quality of different oil. Thus the use costs and oil treatment effects can be taken into balanced account.
Item | Type | ZJC0.6KY-R | ZJC1.2KY-R | ZJC1.8KY-R | ZJC3KY-R | ZJC6KY-R | ZJC9KY-R | ZJC12KY-R | ZJC18KY-R | |
Parameter | Unit | |||||||||
Technical Parameter | Flow Rate | L/min | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Working Vacuity | Mpa | -0.07 ~ -0.101 | ||||||||
Working Pressure | Mpa | ≤0.6 | ||||||||
Temperature Range | oC | 45-65 | ||||||||
Power Supply | 50Hz 380V 3-Phase 4-Wire | |||||||||
Total Power | KW | 6+1.5 | 9+1.5 | 12+1.5 | 30+3 | 2X30+4.4 | 3X30+6 | 4X30+7 | 5X30+9 | |
Inlet/Outlet Diameter | mm | 20/20 | 20/20 | 25/20 | 32/25 | 38/32 | 64/48 | 76/64 | 89/76 | |
Length | mm | 1300 | 1300 | 1300 | 1900 | 1900 | 2100 | 2200 | 2300 | |
Size | Width | mm | 1000 | 1050 | 1050 | 1400 | 1400 | 1500 | 1600 | 1700 |
Height | mm | 1250 | 1450 | 1450 | 1950 | 2100 | 2150 | 2250 | 2300 | |
Weight | Kg | 350 | 420 | 510 | 950 | 1200 | 1600 | 2200 | 3500 | |
Oil Treatment Index | Water Content | ppm | ≤100 | |||||||
Filtering Accuracy | µm | ≤5 | ||||||||
Cleanness | NAS | Grade 5~7 |
