Profile Bending Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

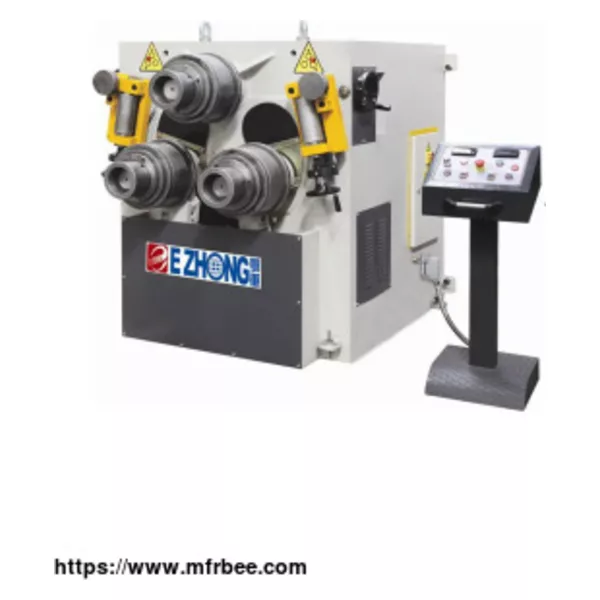

The profile bending machine is special high-efficiency processing equipment for the bending of various profiles such as angle steel, channel steel, I-shaped copper, flat surface, square tube, round
tube, etc. The CNC profile bending machine can complete the end pre-bending and coiling of various profiles He-shaped and hu-shaped workpieces are widely used in aerospace, petrochemical,
hydropower, shipbuilding, automobile manufacturing, machinery manufacturing, steel structure construction and other industries. Overview of the structure of the profile bending machine for sale.
This CNC profile bending machine is an arc downward adjustment structure, the upper roller shaft is fixed, and the two lower spokes respectively make 35 lines of lifting movement around a central
shaft relative to the upper spoke shaft. Its function is mainly to pre-bend the end of the profile and the bending profile is bent and deformed, and at the same time, the two lower spokes are also
the main driving shafts, which are driven by a hydraulic motor, so that the bent and deformed profile is rolled into shape. In order to prevent the deformation of the profile during the bending
process and improve the bending accuracy of the profile, two rollers and rollers are added, which can move up and down vertically to adapt to the profile of different specifications and different
bending radii.
The 180-profile bending machine is a downward-adjustable three-spoke bending machine. The bed is a steel plate structure and is treated to eliminate internal stress. The transmission of the main
report is transmitted to the power through the hydraulic system through the hydraulic motor, gears, and sprocket for rotating motion. . The two side rollers move in an arc around the central axis.
The power transmitted by the hydraulic motor and gears through the hydraulic profile bending machine system and the main stop rotate at the same time. The support rollers are installed on the side
caps so that the support report and the side spokes do at the same time. Arc movement to ensure the precision of the rolled profile. According to the requirements of the site and profile, it can be
installed vertically or horizontally.
The CNC profile bending roller machine produced by ezhong, a profile bending machine factory, is a kind of special high-efficiency metal fabrication equipment for bending angle steel, channel
steel, I-shaped steel, flat steel, square steel, round copper and other special-shaped steel. Round process. This bending machine is advanced in structure, reliable in work, small in size and
complete in functions. It is currently the most advanced profile forming equipment domestic and overseas. EZHONG is a professional profile bending machine manufacturer, and we have high quality
profile bending machines for sale, welcome to contact us for profile bending machine price.
CNC Profile Bending Machine Specification
Bending Angle of copper 80X10
Φ800 100X12
Φ1000 120X12
Φ1250 150X16
Φ1000 160X20
Φ1600 200X20
Φ3000 200X28
Φ2000 200X281
Φ1800 200X281
Φ1800
The inside of Angle steel 80X10
Φ1000 100X10
Φ1000 100X12
Φ1250 130X15
Φ1200 150X20
Φ1600 180X16
Φ3000 200X20
Φ2000 200X281
Φ2000 200X281
Φ2000
T beam 80X9
Φ700 100X12
Φ800 120X13
Φ1250 150X15
Φ1200 160X20 Φ1400 200X20
Φ1600 200X28
Φ1800 200X281
Φ1600 200X281
Φ1600
T-shaped steel bend 80X9
Φ1300 100X12
Φ1500 100X12
Φ1500 130X15
Φ1700 150X20
Φ2000 180X18
Φ2500 200X20
Φ2800 200X281
Φ2500 200X281
Φ2500
Flat steel bending 80X18
Φ800 100X25
Φ700 120X25
Φ1000 150X30
Φ1000 175X40
Φ1200 200X50
Φ2000 250X50
Φ1800 250X70
Φ1800 300X70
Φ2800
Flat steel bending 180X20
Φ500 200X35
Φ600 250 X30
Φ1000 250X40
Φ1000 350X50
Φ900 400X60
Φ2000 450 X70
Φ1000 500X80
Φ1200 500X100
Φ1600
Square steel 50X50
Φ500 60X60
Φ600 70X70
Φ800 90X90
Φ1200 110X110
Φ1500 130X130
Φ1800 145X145
Φ2000 165X165
Φ2200 200X200
Φ2500
Round steel Φ60
Φ600 Φ70
Φ700 Φ80
Φ800 Φ100
Φ1000 Φ125
Φ1200 Φ150
Φ1500 Φ170
Φ1700 Φ190
Φ1900 Φ220
Φ2200
Round tube Φ76
Φ700 Φ100
Φ1100 Φ142
Φ1800 Φ170
Φ2000 Φ190
Φ2500 Φ220
Φ3000 Φ300
Φ4000 Φ330
Φ5000 Φ400
Φ6500
Square tube 65 X 62) 90X 52) 100X6.52) 120 X 82) 150 X 82) 180X102) 200X132) 250X132) 300X132)
I-shaped copper — 100
Φ800 120
Φ900 160
Φ1100 200
Φ1500 240
Φ2000 280
Φ2000 320
Φ2200 500
Φ3000
Channel Steel Outward Bending 140X603) 0600 160X653) *800 200 X 753) *900 300X1003) 01100 3603 )
01200 4503) *2000 5003) *2000 5503) *2200 6003) 01500
Channel steel bend 140X603)
Φ800 160X653)
Φ1000 200 X 753)
Φ1000 300X1003)
Φ1100 3603)
Φ1400 4503)
Φ3000 5003)
Φ2000 5503)
Φ2200 6003)
Φ1500
H-shaped steel — — — 120
Φ3500 180
Φ4500 200
Φ9000 220
Φ9600 240
Φ11000 320
Φ32000
— — — 120
Φ2800 160
Φ3200 180
Φ4600 200
Φ5200 220
Φ5600 300
Φ9600
Interface module 18-25 30-40 45-50 95-110 180-320 300-600 400-700 600-1000 900-1500
Motor power 5.1/5.5 11 11 15 30 37 64 67 67
Ezhong Group CNC Profile Bending Machine Details
- It is an arc downward adjustment type three-spoke profile bending machine, which can complete the functions of rounding, arcing, and rounding of various profiles at one time. (Note: When the
precision of the rolled profile is high, a special mold must be prepared. If the accuracy is appropriately relaxed, a general mold can be used to complete the rolling.)
- The body of CNC profile bending machine adopts steel welded parts, all of which have undergone annealing and other heat treatment processes. It is a closed frame structure. The position of the
upper roller is fixed. The two lower rollers can move in an arc around the fixed center of rotation. All three rollers are active rollers. Its power is provided by a hydraulic motor, which can be
rotated in both forward and reverse directions; the lifting of the two lower rollers is hydraulically driven, which is stable in transmission, safe and reliable; the supporting roller devices on
both sides of the upper roller are beneficial to control the rolling accuracy of the profile. The two lower rollers are equipped with display devices.
- Three-roller full drive system, the upper and lower working rolls of the hydraulic profile bending machine are all active caps. In this way, the "cancellation" phenomenon that may occur during
the rolling process can be avoided. The linear speed of the upper and lower working spokes is automatically matched by the hydraulic system during the rolling process. The rotary motion of the
profile bending machine is equipped with a braking device to ensure accurate positioning during the work rolling. The device runs smoothly, and the rolling is flexible and reliable.
- The main function of the hydraulic system is to drive the rotation movement of the upper and lower rollers, the lifting movement on both sides, and the tracking of the supporting rollers. The
entire hydraulic system has a reasonable design, reliable work, and is equipped with high-precision oil suction and return filters to ensure the cleanliness of the system oil. The cylinder valve
group and hydraulic pipeline adopt quick-fit joints used in metallurgical mines and have reliable radial seals to ensure that the entire hydraulic system has no leakage. The main valve groups in
the hydraulic system are all high-quality products from Northern Taiwan Precision Machinery. The pumps, oil filters, motors, and seals are all made by domestic famous brand manufacturers with
stable performance and reliable quality. All hydraulic components are tested and screened before entering the factory of ezhong profile bending machine manufacturer to eliminate hidden troubles in
advance.
Options Of Profile Bending Machine for Sale
■Steel structure bed and eliminate stress.
■Special hardened and ground shaft.
■Mobile console.
■Bidirectional hydraulic side guide shaft.
■Two-speed working system.
■Standard 3+3 manual side support.
■Specially designed box conversion type profile bending machine for sale, the upper shaft can move up and down, and the two lower shafts can move left and right.
■Pressure adjustment for thin and high-precision materials.
■Infinitely variable speed adjustment.
■Various types of pipes, profile molds and HEB, IPN and UPN beam accessories are available according to customer needs.
EZHONG Profile Bending Machine Safe Operation Notes
1. First, fix the upper mold of cnc profile bending machine so that the center of gravity of the mold and the center of the pressure head is in a straight line; the planes of the upper and lower
molds must be in close fit with uniform clearance and check that the upper mold has sufficient stroke.
2. Start the profile bending machine, test the pressure, and check whether there is any abnormality and whether the lubrication is good. For hydraulic profile bending machine workpieces that are
difficult to remove from the mold, add some lubricant or lubricating oil appropriately to reduce friction so that it is easy to demold.
3. Before the formal profile bending, you must check whether the number and size of the workpiece are consistent with the drawing and whether the blank has burrs that affect the pressing quality.
For large batches of workpieces, a stopper capable of adjusting the positioning must be installed, and the position of the stopper should be adjusted in time if the deviation is found.
4. It is forbidden to pick and place the workpiece directly on the mold of the profile bending machine by hand. For larger workpieces, they can be picked and placed outside the mold. For workpieces
smaller than the mold, other tools should be used to pick and place them.
