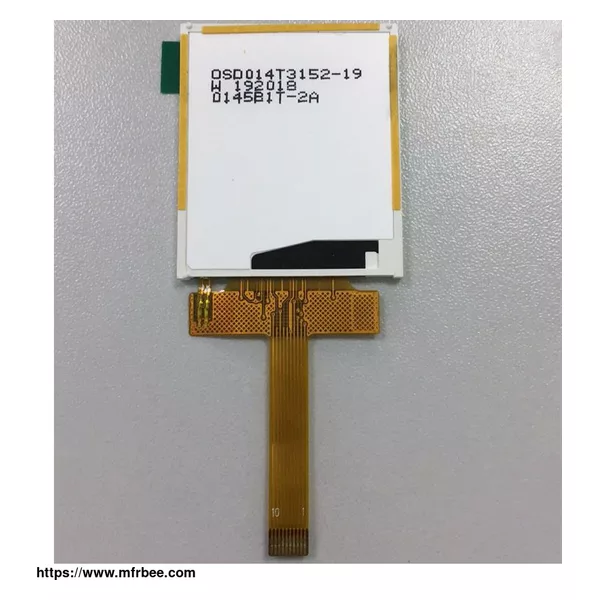

1.44 Inch SPI Interface 128x128 Small LCD Module

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Kingtech 1.44inch 128x128 lcd display is a small size display. This display supports SPI interfaces.

The TFT display does not have existing resistive touch and TFT capacitive touchscreen, but the touch can be customized according to customer requirements. This 1.44inch display can be used for smartwatch and industrial device.

Features of 1.44 Inch SPI Interface 128x128 Small LCD Module

128x128 resolution

Square display

Can custom resistive and capacitive touch screen

SPI TFT LCD interfaces

Application is for smartwatch

Specification of 1.44 Inch SPI Interface 128x128 Small LCD Module

Kingtech Diaplay will provide the customers with qualified standard dispalys and satisfying one-stop services. Any demands for specifications will be welcomed.

Item Kingtech 1.44inch 128x128 lcd display

Model No PV144000YP10B

Resolution 128×128

Outline Dimension 32.6(W)×38.00(H)×2.6(T)

Active Area(mm) 25.50(W)×26.50(H)

Interface 3-wire SPI / 4-wire SPI

Viewing Angle 6 o'clock

Driving IC ST7735S

Display Mode Normally White, Transmissive

Operating Temperature -20 to +70℃

Storage Temperature -30 to +80℃

Brightness 240nits

Touch screen Can custom resistive and capacitive touch screen

Application of 1.44 inch display

The 1.44 inch lcd 128x128 square TFT LCD display can be used for medical device, handheld equipment, industrial control, smart home and smartwatch.

If you need any kinds of lcd module, please contact us, as a professional lcd screen supplier, Kingtech is willing to offer you high quality products.
