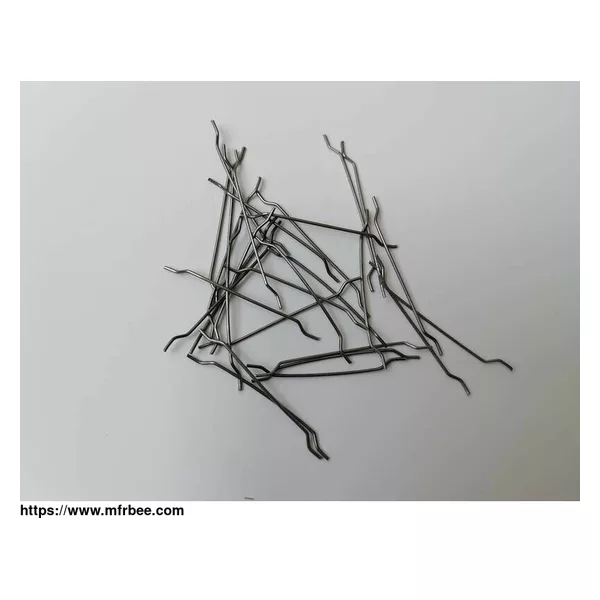

SDS Loose Hooked End Steel Fiber

Place Of Origin: Shandong Province,China.

Minimum Order: 100

Packaging: 20kg/bag,1ton/pallet,16tons/20' 22tons/40'

Delivery: 15-20 days

Hooked end steel fibres are made of high-quality cold drawn steel line, in order to make sure that it has high tensile strength and animal tolerance. And the steel fiber in bulk ensures the mixing fast and convenient, and the distribution homogeneous. During pulling from the cement, the steel fiber hooked end is deformation slowly it is considered to be the best anchorage force.

Unlike conventional reinforced fiber, steel fibers focus on three-dimensional reinforcement and make it impossible for a plain crack to follow.

Advantages of Loose Hooked End Steel Fiber

Technology advantage

The design of end hooks at both ends of steel fiber is the best anchoring design, which slowly deforms in the process of drawing, thus enhancing the binding force between hooked steel fiber and concrete.

Material advantage

SDS hooked steel fibre is made of high-quality wire by cold drawing, and its tensile strength is greater than 1100MPa, which ensures extremely small tolerance and high tensile strength.

Economic advantage

A.Compared with ordinary concrete, the same mixing and construction, do not need to add equipment.

B.Under the same strength, the concrete consumption can be saved

C.Replace or partially replace reinforcement

D. Shorten the construction period, especially suitable for large projects requiring continuous and rapid pouring of concrete.

Types of Loose Hooked End Steel Fibre

SDS-05030 0.50mm Diameter 30mm Length Hooked End Steel Fiber

SDS-05530 0.55mm Diameter 30mm Length Hooked End Steel Fiber

SDS-05035 0.50mm Diameter 35mm Length Hooked End Steel Fiber

SDS-05535 0.55mm Diameter 35mm Length Hooked End Steel Fiber

SDS-07535 0.75mm Diameter 35mm Length Hooked End Steel Fiber

SDS-07560 0.75mm Diameter 60mm Length Hooked End Steel Fiber

SDS-09060 0.90mm Diameter 60mm Length Hooked End Steel Fiber

Specification of Loose Steel Fiber Hooked End

Products Diameter Length L/D ratio TS Type Package

SDS-05030 0.50mm 30mm 60 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05530 0.55mm 55mm 55 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05035 0.50mm 50mm 70 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-05535 0.55mm 35mm 64 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-07550 0.75mm 50mm 67 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-07560 0.75mm 60mm 80 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-09050 0.90mm 50mm 56 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-09060 0.90mm 60mm 67 >1150MPa Loose 20kg/bag,1ton/pallet

SDS-10050 1.00mm 50mm 50 >1150MPa Loose 20kg/bag,1ton/pallet

Star Smith is one of professional steel fiber suppliers that able to offer many types of steel fibers used in concrete and other circumstances including glued steel fiber, loose end steel fiber, brass fibers, etc. Contact us to learn more about our steel fibers!
