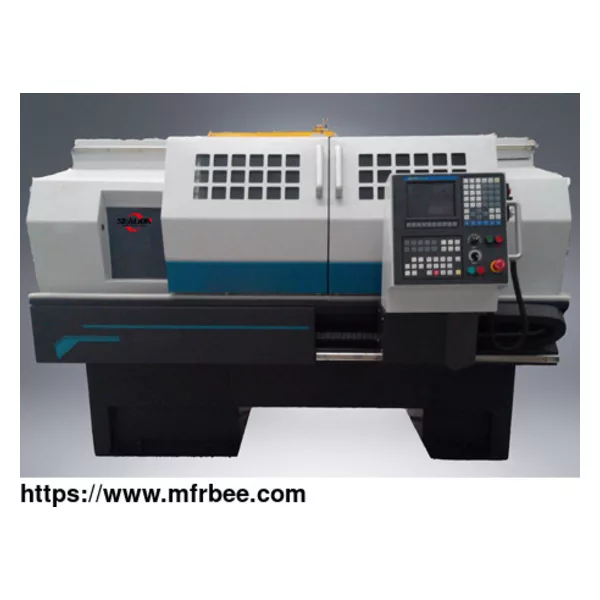

Flat Bed CNC Lathe

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

flat bed type cnc lathe can turn large axle parts and disc parts with various kinds of threads, arcs, cones, end faces and inner and outer surfaces of revolving bodies. It can meet the requirements of high-speed cutting.

As a leading China flat bed cnc lathe manufacturer, Sealion specializes in providing high-quality flat bed lathe machine for different applications. Buy flat bed cnc lathe china, Choose Sealion!

Features of Flat Bed CNC Lathe

A series china horizontal cnc lathe is controlled by the CNC system for the X and Z axis, which can finish all kinds of cutting and turning on shafts or discs. Such as cylindrical surfaces, circular conical surfaces, arc surfaces, end faces, grooving, chamfering, metric and imperial straight thread, end face thread, and taper thread. This kind of flat bed lathe is suitable for multiply kinds and small or medium batch productions, especially wonderful for complicated and high accuracy parts.

Slant Bed Lathe vs Flatbed

Flatbed lathes remain perfect and can achieve the accuracy of rigid materials, while slant beds can obtain Z-axis movement during processing firstly.

For handling lighter and heavy-load materials, it is best to use a flat bed, because the slant bed can only work on lighter materials.

In terms of low power consumption, higher productivity, stability and machining, flat bed cnc best lathe machines are more reliable than slant beds.

Slant bed lathes only work on lighter materials and are therefore relatively beneficial in terms of loading, access and processing, while flat bed lathes require the support of skilled professionals who can handle them correctly.

Applications and Benefits of Flat Bed CNC Lathe

In the case of precise metal positioning, the flat bed CNC lathe can work effectively to achieve high rigidity accuracy. It is Mainly used for heavy-duty cutting. Flat bed CNC lathes are also designed in various forms to manage the light metal and heavy metal turning process. In industries that require more workshop machining, a flat bed CNC lathe is found to be a more suitable choice, because we can obtain precise finishing and feel the ease of cutting and drilling, thus saving economic energy consumption. The most popular industry that flat bed CNC lathe are preferred, such as mining, transportation, paper industry, machinery, power plants, industries with high requirements for drilling technology, metal shearing industry, etc.

Advantages of Flat Bed CNC Lathe

High tension structure. The cnc controlled flatbed lathe is cast with resin sand and treated by artificial aging, so it has good rigidity and shock absorption, which can ensure high-precision machining.

Manual or automatic gearbox

Fast and precision feeding. The longitudinal and transverse motion axes of the machine tool are driven by servo motor, precision ball screw, high rigidity precision bearing, and the position detection feedback by the encoder.

Automatic lubrication system by PLC.

Vertical 4 station tool post or Horizontal 6 station tool post

Manual or hydraulic chuck

Manual or hydraulic tailstock

Fully closed cover with waterproof function.

Forced air cooling system

Parameters of Flat Bed CNC Lathe

Item Unit CK6136 CK6140 CK6150 CK6163 CK6180 CK61100

Max swing over bed mm 360 400 500 630 800 1000

Max swing over cross slide mm 180 200 280 320 490 700

Max job length mm 1000 1000 2000 5000 5000 6000

Max cutting diameter V4 mm 360 400 500 630 800 800

Max cutting diameter H6 mm 300 300 400 620 620 620

Spindle center height mm 186 200 250 315 400 515

Main motor power kw 4.5 4.5 8 11 11 22

Spindle speed r/min 32-2000 32-2000 45-2000 7.5-1000 7.5-1000 7.5-1000

Tailstock quill diameter mm 63 63 75 100 100 100

Max travel of X mm 230 230 280 320 400 400

Max travel of Z mm 830 830 1935 4750 4750 5750

X/Z Rapid feed speed m/min 4/5 4/5 4/8 4/8 4/7.5 4/7.5

Tool Shank Size mm 20x20 20x20 25x25 32x25 32x25 32x25

Positioning accuracy mm 0.018

Repeatability mm 0.006

Machine weight Kg 1800 1850 2550 4800 5300 5600.
