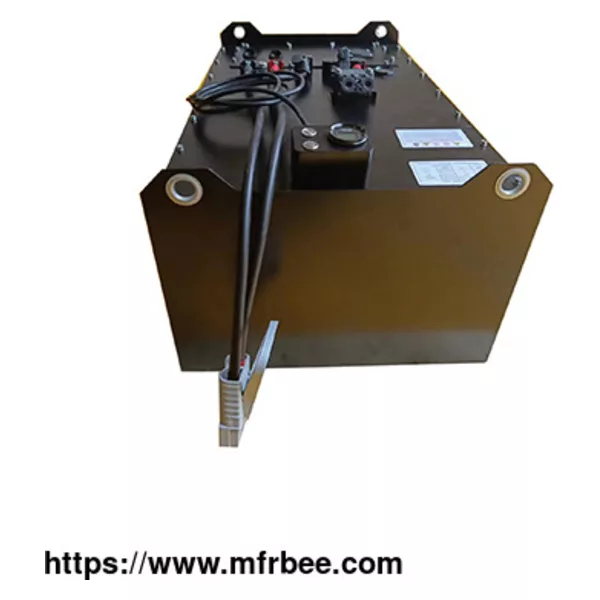

80V Lithium-ion Forklift Battery

Place Of Origin
Nanjing City, China
Minimum Order
10
Packaging
Carton by air,plywood cases by sea
Delivery
15days

Smart FLT Series: Forklift Lithium Ion Battery 83.2V412Ah and 83.2V554Ah

Remote&Onsite Product Support

GPS&GPRS function

Charger communication commissioning

Charge and discharge connector adaption

Interactive integrated Display with voice, buzz and switch button

Customization service against different brand of forklifts

IP 54 structure design

Flexible supply in additional weight

Vehicle CAN communication support

Technical Datas of 80 Volt Forklift Battery
No. Items Parameter Note
83.2V412Ah 83.2V554Ah
206Ah2P26S 277Ah2P26S
1 Nominal voltage(V) 83.2 83.2
2 Operating voltage(V) min 65 65
3 max 94.9 94.9
4 Group mode 2P26S 2P26S
5 Nominal energy(KWh ) 34.28 46.09 25±2℃
6 Weight(Kg) ≈380kg ≈420kg not additional weight
7 Nominal capacity(Ah) 412 554 25±2℃
8 Maximum continuous charge current(A) 200 200 25±2℃
9 Maximum continuous discharge current(A) 200 200 25±2℃
10 Maximum pulse discharge current(≤10s)(A) 550 550 25±2℃
11 Shipping consistency(mv) 30 30 Voltage difference between cell <30mV
12 Charging port Customizable Customizable
13 Discharging port Customizable Customizable
14 GPRS communication 4G 4G Optional
15 SOC operating range(%) 20~100 20~100
16 Insulation requirements(MΩ) ≥20 ≥20 500V DC,High voltage output to battery shell, at the normal temperature and humidity
17 cooling method Natural cooling Natural cooling
18 Shipping capacity ≈30% ≈30% SOC is consistency in the same batch
19 Dimension L (mm) 970 992 Outer box dimension can be costomizable according to the brand and model of forklifts
Dimension W (mm) 570 596
Dimension H (mm) 485 609
20 Charger Optional Optional
