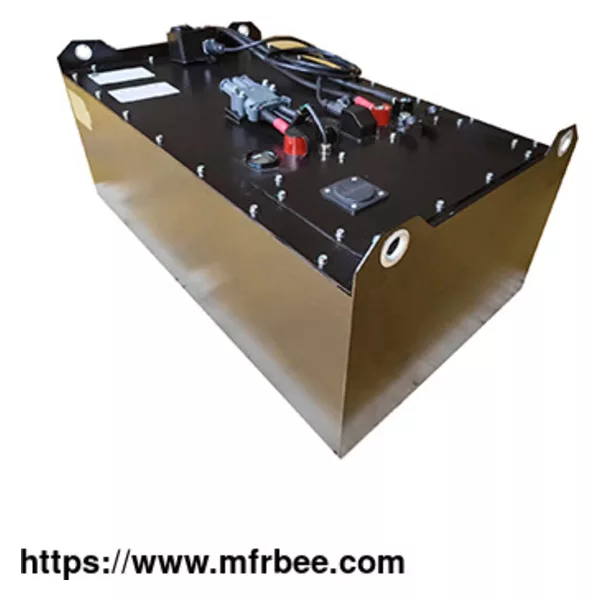

48V Lithium-ion Forklift Battery

Minimum Order
10
Place Of Origin
Nanjing City, China
Packaging
Carton by air,plywood cases by sea
Delivery
15days


Smart FLT Series:Forklift Lithium Ion Battery 51.2V300Ah,51.2V412Ah,51.2V460Ah and 51.2V554Ah

Remote&Onsite Product Support

GPS&GPRS function

Charger communication commissioning

Charge and discharge connector adaption

Interactive integrated Display with voice, buzz and switch button

Customization service against different brand of forklifts

IP 54 structure design

Flexible supply in additional weight

Vehicle CAN communication support

Technical Datas of 48 Volt Lithium Ion Forklift Battery
No. Items Parameter Note
51.2V300Ah 51.2V412Ah 51.2V460Ah 51.2V554Ah
150Ah2P16S 206A2P16S 230Ah2P16S 277Ah2P16S
1 Nominal voltage(V) 51.2 51.2 51.2 51.2
2 Operating voltage(V) min 40 40 40 40
3 max 58.4 58.4 58.4 58.4
4 Group mode 2P16S 2P16S 2P16S 2P16S
5 Nominal energy(KWh ) 15.36 21.09 23.55 28.36 25±2℃
6 Weight(Kg) ≈200kg ≈230kg ≈230kg ≈270kg not additional weight
7 Nominal capacity(Ah) 300 412 460 554 25±2℃
8 Maximum continuous charge current(A) 150 200 200 200 25±2℃
9 Maximum continuous discharge current(A) 300 200 300 200 25±2℃
10 Maximum pulse discharge current(≤10s)(A) 550 550 550 550 25±2℃
11 Shipping consistency(mv) 30 30 30 30 Voltage difference between cell <30mV
12 Charging port REMA320A(female) Customizable REMA320A(female) Customizable Customizable
13 Discharging port SB350A Customizable SB350A Customizable Customizable
14 GPRS communication 4G 4G 4G 4G Optional
15 SOC operating range(%) 20~100 20~100 20~100 20~100
16 Insulation requirements(MΩ) ≥20 ≥20 ≥20 ≥20 500V DC,High voltage output to battery shell, at the normal temperature and humidity
17 cooling method Natural cooling Natural cooling Natural cooling Natural cooling
18 Shipping capacity ≈30% ≈30% ≈30% ≈30% SOC is consistency in the same batch
19 Battery box dimension L (mm) 970 800 970 830 Customizable
W(mm) 500 530 560 474
H (mm) 405 450 405 600
20 Outer box dimension Outer box dimension can be costomizable according to the brand and model of forklifts
21 Charger Optional Optional Optional Optional
