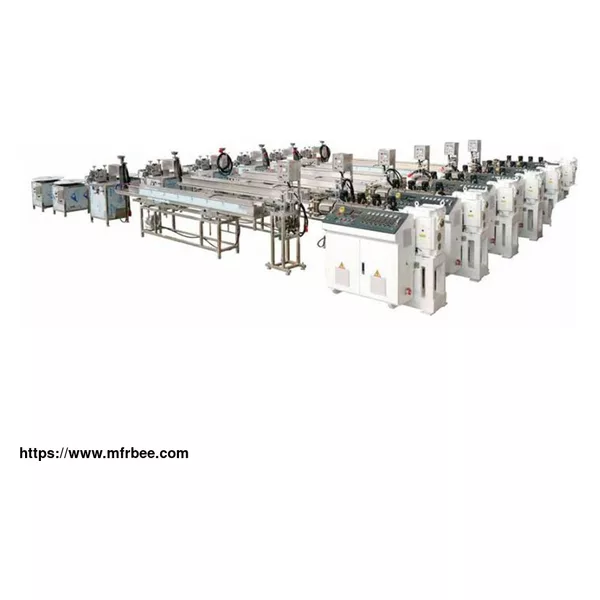

PVC Edge Banding Extrusion Line

FOB Price: USD $50,000.00 / Piece

Minimum Order: 10

Packaging: wooden case

Delivery: 50 Days

We have extensive experience in the field of plastic Edge Banding production. Our company has absorbed the advanced technology at domestic and abroad and successfully researched and developed this high quality PVC edge banding extrusion production line which can meet requirements of customers. The PVC edge banding production line consists of single screw extruder or twin screw extruder, mold, embossing device, vacuum calibration unit, haul-off unit with gluing roller device, air dryer device, cutting device and winder, etc.

Advantages of PVC Edge Banding Extrusion Line

04.

The auxiliary machine with vacuum pump and haul-off unit motor adopt high-quality products for convenient maintenance.

05.

There are over 500 technical engineers and operators working at JWELL, which means we have enough technology resource to support your production.

06.

We are a manufacturing vendor with vertical set-up, which means we have a great control of supply chain and we are cost-effective.

Specification of PVC Edge Banding Extrusion Line

Model Driving motor Screw rpm Capacity Product's size Thicknesss

JWS45/25 11KW 5-50rpm 1520Kg/h 12-35mm 0.4-1mm

JWS50/25 15KW 5-50rpm 25-30Kg/h 12-35mm 0.4-1mm

JWS55/25 18.5KW 5-50rpm 30-50Kg/h 12-45mm 0.42mm

JWS65/25 22KW 5-50rpm 50-60Kg/h 12-50mm 0.42mm

Find More About PVC Edge Banding Extrusion Line

Extruder

Special designed screw produced by our own company which was founded in 1978 with rich experience.

High quality PLC control system, high automation.

Calibration Unit

Coordinated pipeline for water supply and drainage to ensure stable production process.

High pressure vacuum system keeps great product shape.

Haul Off

Integration of traction, backside coating, drying.

High production speed.

The process of applying back glue is fully closed and the glue is not easy to volatilize, healthy and safe.

Single traction or double traction optional.

Cutter&Winder

Automatic winding, counting, cutting.

High efficiency, labor saving.

The Application of PVC Edge Banding Extrusion Line

PVC edge banding strips are mainly used for veneering, edge banding, packaging and blistering of furniture and office appliances.

For more information about pvc pipe machine, please feel free to contact us!
