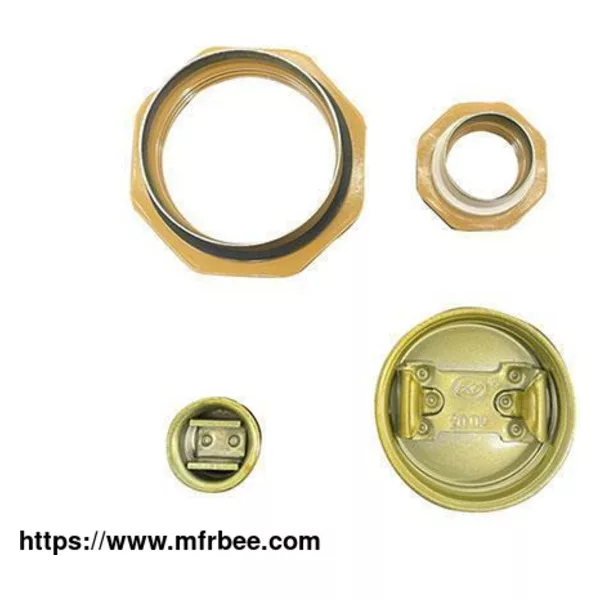

Lacquered Drum Plug

Place Of Origin
China
Minimum Order
500
Packaging
N/A
Delivery
5-15 days
Lacquered drum bung plug, barrel bung plug is G2 and G3/4 drum plug with lacquered resins for better resistance to the drum filers, such as food contact, solvent corrosion and high temperature. XEAL® lacquered closures enable its application to wider industries.

The fine-controlled lacquer layer on drum plug does not easily fall off during screwing into drum flange. Such good adhesion is achieved by many factors such as base pre-treatment, spraying equipment, oven control and final treatment.

Details of Lacquered Drum Plug
1
There are mainly three types of lacquer resin applied either to the inner side of steel drum or on outer outside of drum closure. Phenolics, epoxy phenolics and PVF, while there is also top side lacquered on steel drum plugs for extreme environmental conditions.

2
There are golden brown, green and golden yellow etc lacquered, those are from selections of PPG2088, DuPont R78433, Axalta, RDL, Resco lacquer or their substitutes.

Specification of Lacquered Drum Plug
Size 2 Inch and 3/4 Inch
Material Cold-rolled Steel
Surface Treatment Lacquered with Phenolics, Epoxy Phenolics and PVF
Thread Standard ISO-228
Gasket EPDM, Black Buna, PE, Viton, Irradiated Poly gasket
Carton Quantity 250 Pieces, 500 Pieces
Pallet Quantity 11,250 Pieces, 22,500 Pieces

We can offer different barrel plug types for sale, if you have needs to buy barrel bung plug, please contact us.

Now the price of drum bung fittings is reasonable, anything you need, please leave us a message.

If you are looking for a reliable cap seal manufacturer, please choose us, and we will be your best partner.
