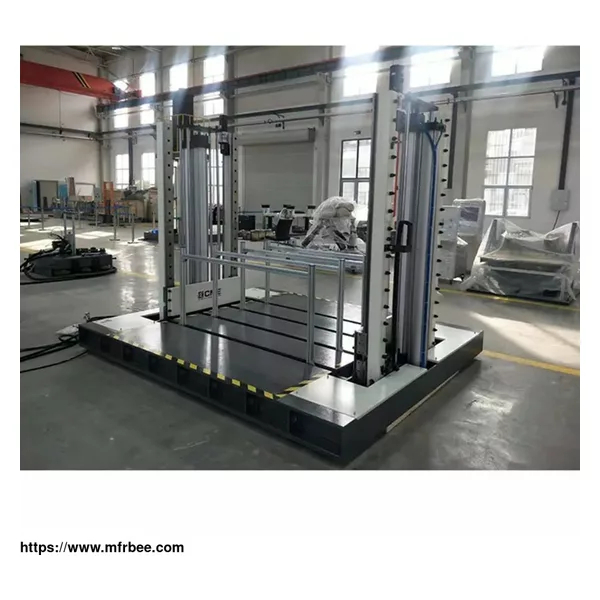

KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE

KRD42 series zero-distance drop tester is double lifting drop test machine, which is mainly used for packaging goods that will be impacted by a vertical drop during transportation, loading and unloading operations. It is suitable for large size packaged products to assess the effects on a specimen of simple standard tests for the purpose of assessing safety requirements. This drop testing equipment can be used as common test equipment for drop tests in scientific research institutions, universities, packaging technology testing centers, packaging material manufacturers, and foreign trade and transportation departments. KRD42 drop test machine complies with the international standard ISO2248, IEC68-2-27 and ISTA relevant standards.

FEATURES OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE

l Servo closed-loop motor drive, simple structure, high reliability, smooth lifting

l Adopt a double fully automatic lifting method, and the drop height is adjustable

l PLC control is stable and reliable, the drop height can be accurately tracked and displayed in real-time

l Handheld pad + human-computer interaction software, easy to operate

l It can realize the drop test of the edge, surface, and angle of the sample

l True color full touch screen operation, convenient and quick

TECHNICAL SPECIFICATIONS OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE

Model	KRD	KRD	KRD	KRD
Parameters	42- 500	42 - 800	42 - 1000	42 - 2000
Max.Load (kg)	500	800	1000	2000
Drop Height (mm)	0~1200	0~1000	0~1000	0~800
Max. Specimen Size (mm)	1400×1400×1400	1500×1500×1500	1600×1600×1600	1800x1800×1800
Position Accuracy	±2
Drop Zone Size (w*D/mm)	2400×1600	2600×1700	2800×1800	3200×2000
Test Mode	Face, Edge and Angle
Power	AC 380V ±10% 5OHz
Working Environment	Temperature range 0~40°C, humidity80% (no condense)
Standards	ISO2248-1985(E) IEC68-2-27ISTA

TABLE OF KRD42 DOUBLE LIFT ZERO DISTANCE DROP TEST MACHINE

KRD42 series double liftdrop test table is mainly composed of an impact plate, lifting system, a working table, guide shaft, fixtures, displacement sensor, release mechanism, etc.

The working principle of the vertical drop test system can be briefly described as the lifting cylinder lifting the working table and the test piece to a certain height, and is released by the electromagnetic release mechanism. Since the work surface adopts a compressed energy storage spring during the lifting process, the work surface falls at a speed greater than the falling speed of the test piece. The test piece keeps its original state (face, edge, and corner) and falls freely, collides with the bottom plate, and completes the test requirements.

As one ofdrop test equipment suppliers, we can offer sorts of related products for sale, if you have needs, please contact us.

CME Technology Co., Ltd. was established in 2006, specializing in the research, development and manufacturing of mechanical environment andreliability test equipment, our mechanical testing equipment products including shock /bump testing machine, drop test machine, transportation simulation test table, hydraulic vibration shakers, multi-DOF motion simulation table, centrifugal constant acceleration tester, packaging test machine and etc.
