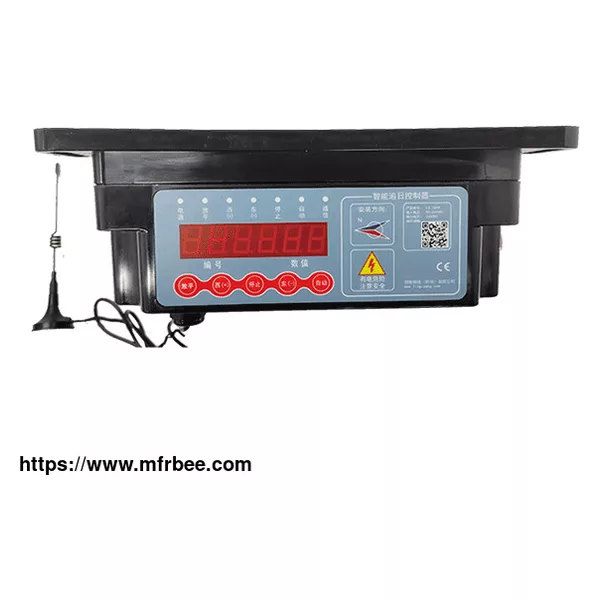

One axis solar tracker 24D02 works on an AC power supply with 350W output, which matches DC motors. One axis tracker's input voltage is between 90-264VAC and its output is 24VDC.
Features: Matching power of 350W DC motor, it can carry heavy loads.
Advantage: This kind of single axis tracker controller equipment has stronger power and stable operation.
System Datasets of Solar Tracker Controller TCU - FA 260P-24D02
System Datasets | |
Models of product | FA 260P-24D01 |
Types of tracking panel | horizontal single-axis/ titled single-axis |
Drive systems | slewing reducer + DC motor / linear actuator + DC motor |
Motor power | 200W |
Daily power comsumption | ≤0.17kW.h |
Types of control | active tracking closed-loop control (astronomical algorithm + location feedback) |
Mechanical Datasets | |
Sizes | 262mm*182mm*120mm |
Box material | polymer material Makrolon®6487 |
Water-proof level | IP65 |
Display interface | YES |
Keyboard interface | YES |
Electrical Datasets | |
Types of power supply | L+N(two-phases input)90-264VAC(wide input voltage) |
Output voltage | 24VDC |
Wind protection | YES |
Nighttime reset protection | YES(confirmed) |
Disturbing protection | YES (soft pounding protection, over current protection, over load protection) |
Anti-shadow tracking | YES |
Wind speed protection | 10m/s-30m/s(3S)(customized) |
Types of communication | ZigBee/LoRa(wireless)/ RS485(wired) |
Angle range of tracking | ±30°-±60°(customized) |
Models of AI control | customized |
Network background | customized |
Work temperatures | -30℃-70℃ |
Note: Standard setting above. For customized setting, please contact the team of Lingyang Technology
