SPECIFICATION

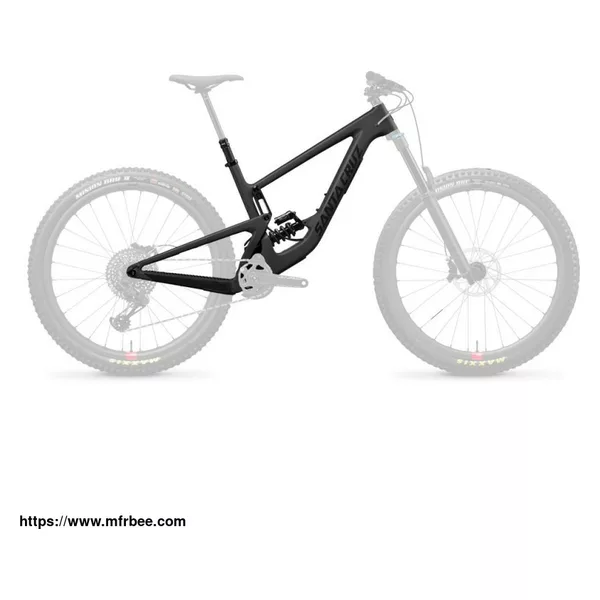

Frame Santa Cruz CC Carbon | One-piece swingarm | VPP lower-link mounted shock design | Flip Chip units in the lower link and rear dropouts
Fork Compatibility 160-180mm / specced with 44mm offset fork
Rear Shock RockShox Super Deluxe Coil Ultimate rear shock, 160mm travel
Wheel size compatibility 29”
Tyre clearance Up to 2.5” (short Flip Chip position) or 2.6” (long Flip Chip position)
Recommended headset IS41/52 Integrated (SHIS name
Seatpost diameter compatibility 31.6mm
Eye to Eye length 230
Stroke 57.5
Thru-axle 12mm rear x 148 boost
Bottom bracket shell Threaded BSA 73mm
Max Chainring Size 36t
Chainline Spec Boost
Brake Types Post Mount
Shock Mounting Bushing Front 20x8
Shock Mounting Bushing Rear 30x8
Chainguide compatibility Yes
Changeable rear derailleur hanger Yes
Refined cable routing for better shifting performance, simpler installation, and no cable rub
Shuttle guard
Downtube protector | Shock guard | Ribbed chainstay protector
Water bottle mounts inside the main frame
Included in delivery Frame including RockShox Super Deluxe Coil Ultimate, 12mm thru-axle and seat clamp
Manufacturer Claimed Weight 2kg, size M
